UFS-067 Lawn Mower Funnel Long Reach Spout or Small Engine Oil Funnel

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

PLA (filament)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

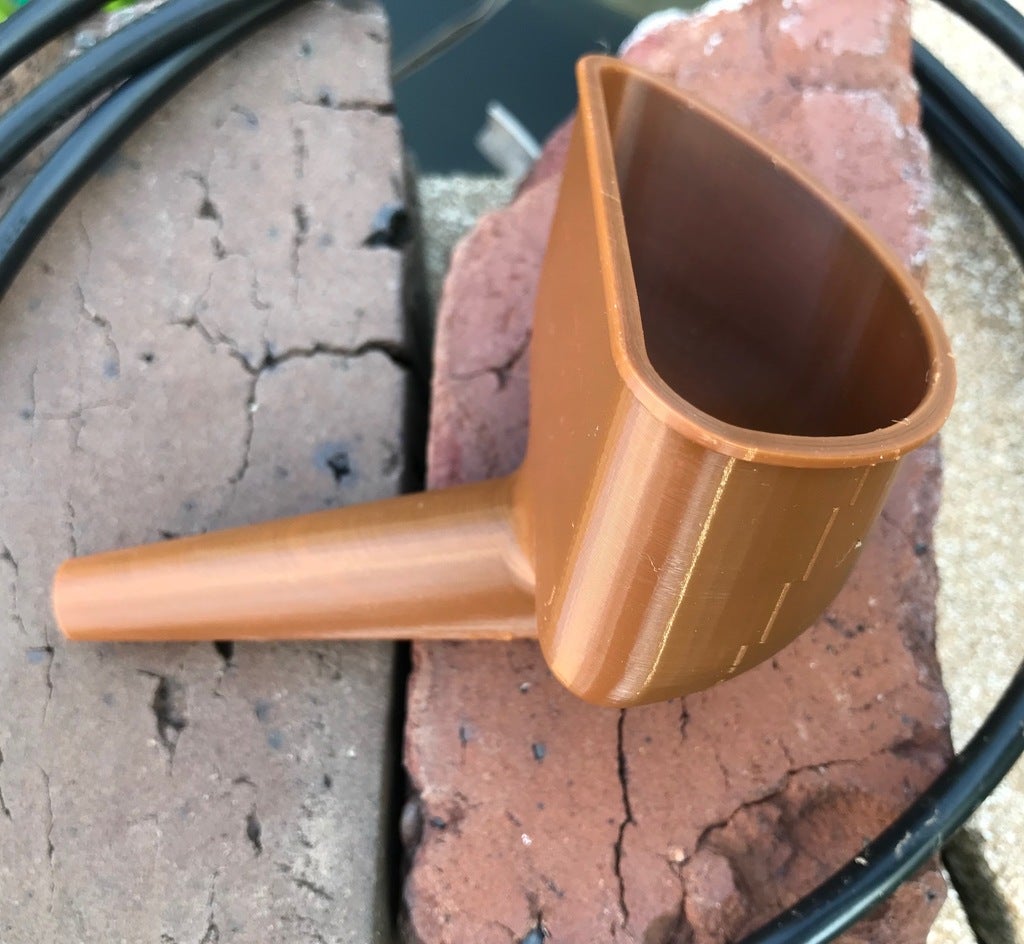

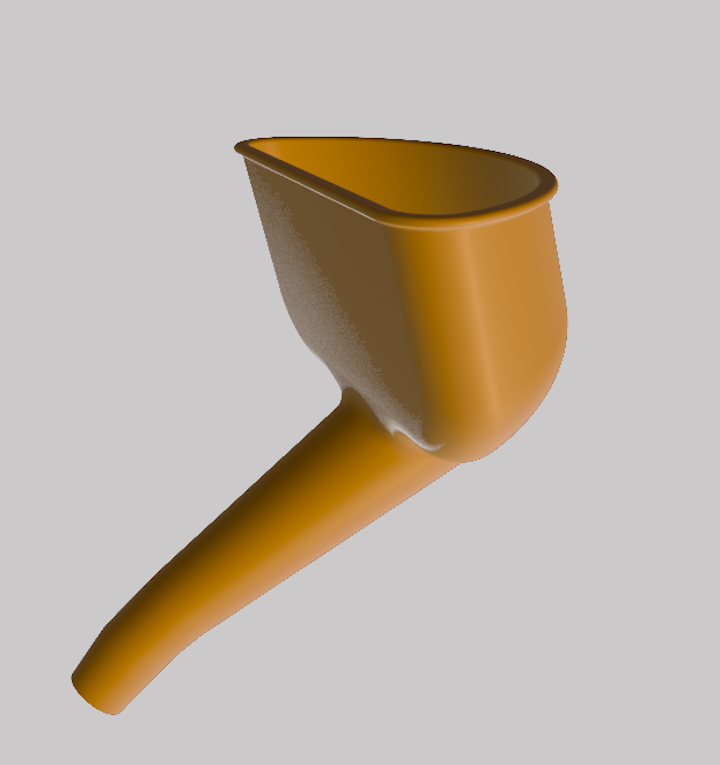

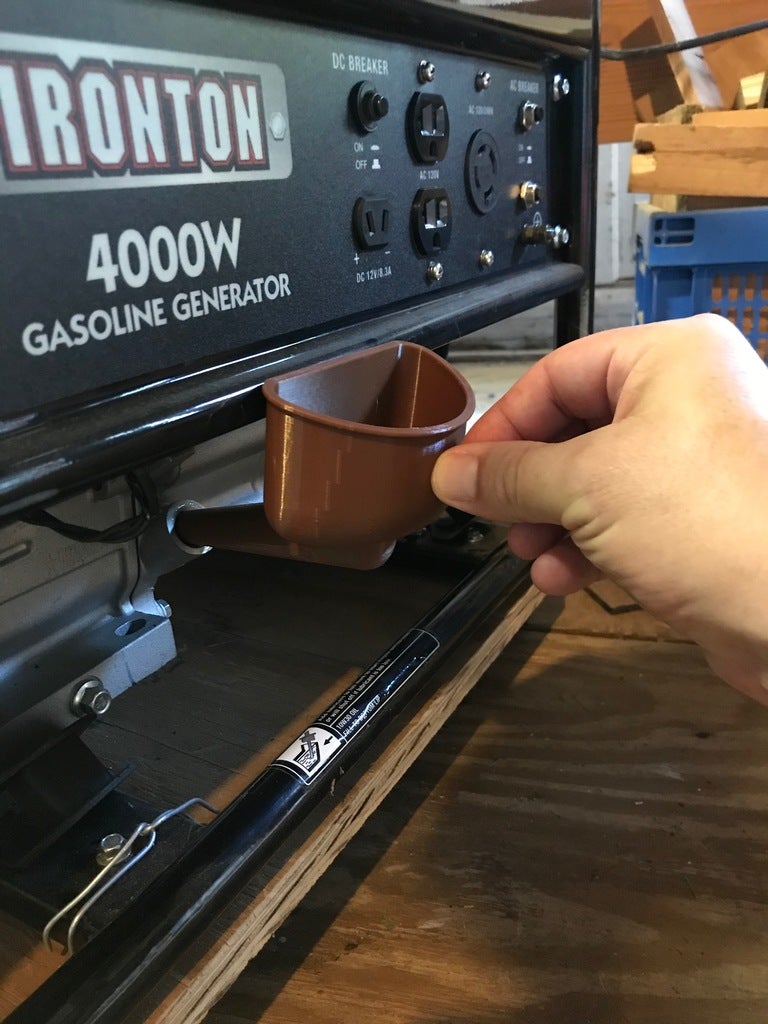

I’ve been collecting funnel ideas for awhile. I’ve downloaded parametric models that you can customize however you like. I also downloaded several with interesting shapes. This was all because I needed a funnel with a long spout to reach the oil fill on a lawn mower and also a generator. The access is terrible, and I originally spilled a lot of oil trying to fill up the oil level. Then I came across the Trailer Water Fill Funnel. I liked the flat side. That really helps bring the funnel closer to the side of the item being filled. It just needed an extra long spout. I didn’t want to use supports, so I angled the top of the funnel. When printed upside down, the sides are steep enough that I didn’t need any support. You can add them if you want, but they can be a pain to remove from the spout. There are two models. The first one I printer, and a second one with a slightly longer and narrower spout. Beware, Cura didn’t like this model. I had voids in a couple of spots. I had to adjust settings to get it to print. Make sure you preview before printing. Print Settings Printer Brand: Creality Printer: CR-10S Rafts: No Supports: No Resolution: 0.2 Infill: 3 or more shells, 35% infill Filament: generic PLA any Category: Machine Tools
