Universal Customizable Euro Cabinet Hinge Drill Guide

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

PLA (filament)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

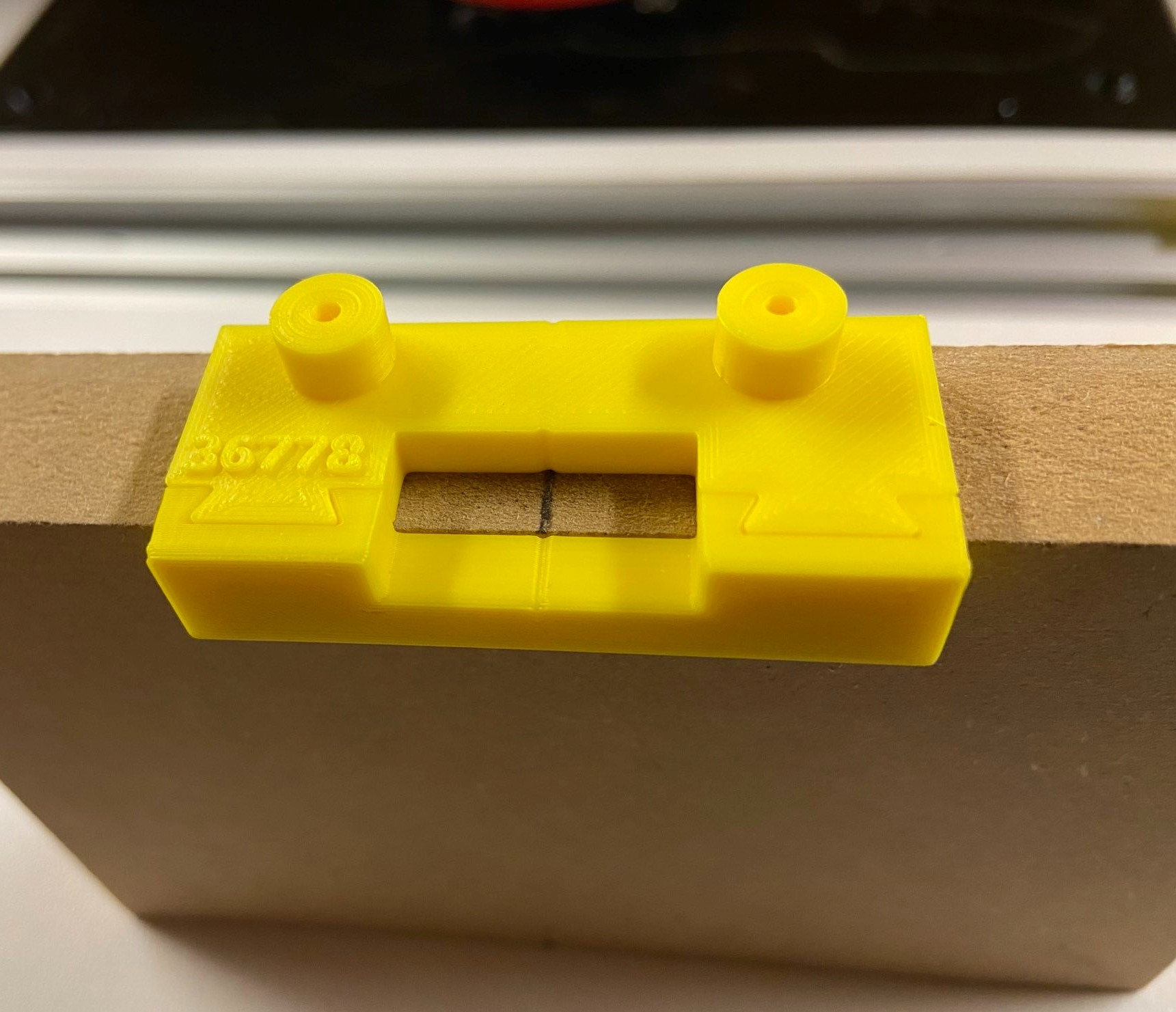

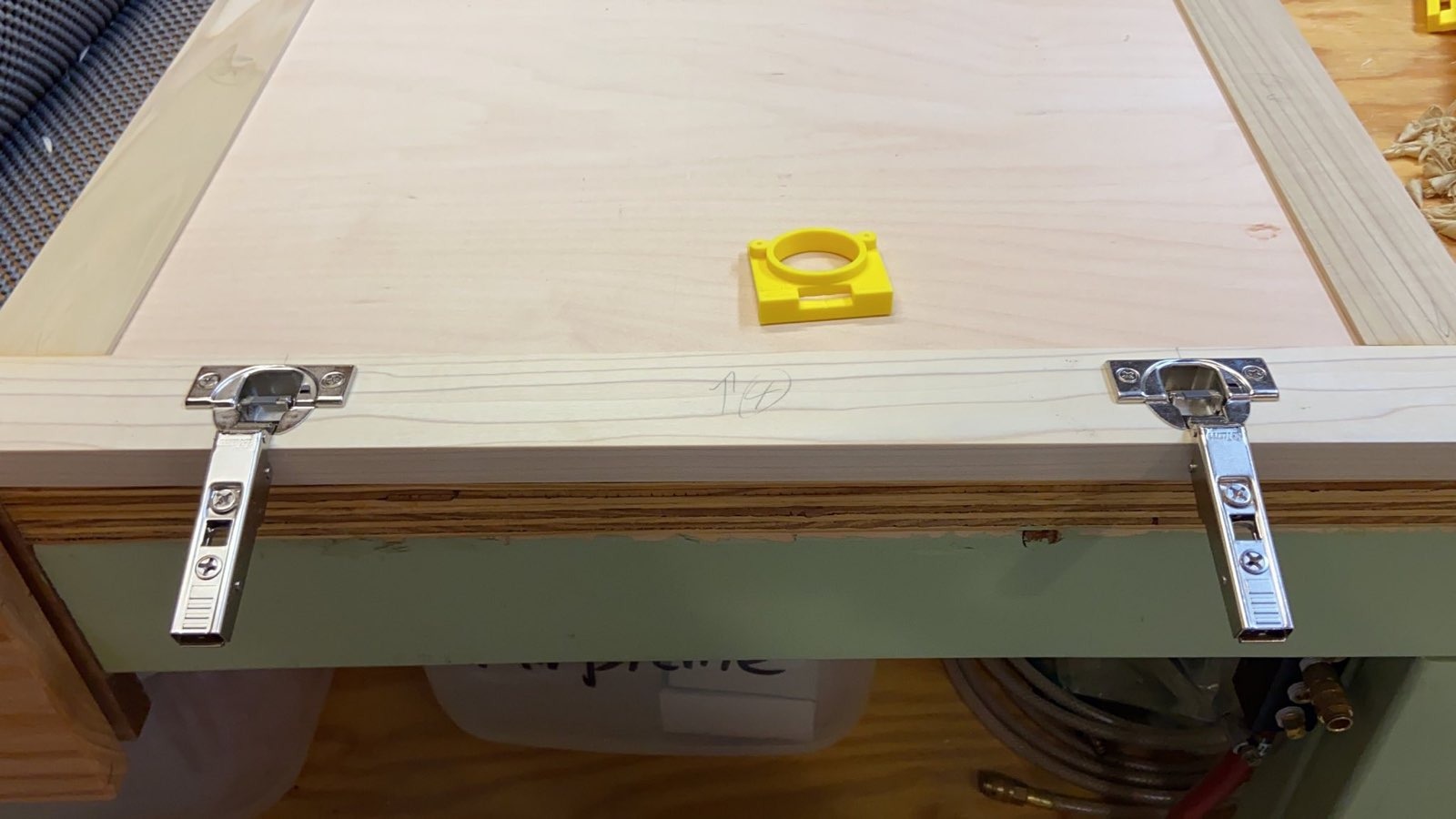

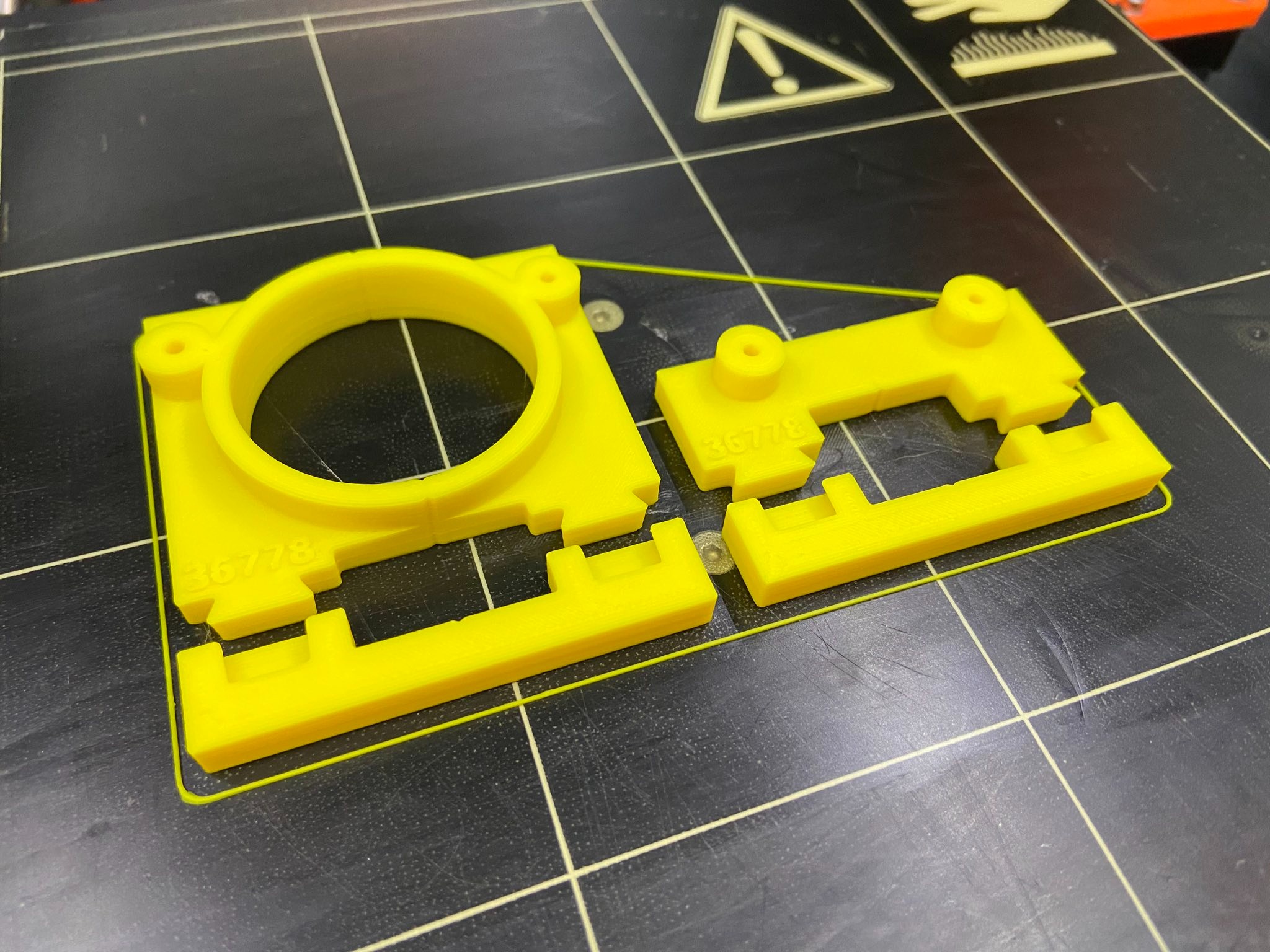

Jig provides drill alignment for cup hole, door screw, and frame/carcass screw alignment. All major dimensions are customizable within OpenSCAD to the required dimensions of a hinge. Self-aligning dovetails allow for printing flat, without supports. Text label to indicate the hinge type. Updated with versions for a few different Blum hinge styles, with STL exports. Hinges covered by these STLs are: * Blum 46526 110° BLUMotion 3/8" Overlay Face Frame Compact Hinge * Blum 46572 110° BLUMotion 1/2" Overlay Face Frame Compact Hinge * Blum 44308 110° BLUMotion 3/4" Overlay Face Frame Compact Hinge * Blum 46762 110° BLUMotion 1 1/4" Overlay Face Frame Compact Hinge * Blum 33603 110° BLUMotion Half Overlay Frameless Hinge * Blum 32894 110° BLUMotion Full Overlay Frameless Hinge * Blum 33600 110° BLUMotion 3/8" - 5/8" Overlay Face Frame Hinge * Blum 36778 110° BLUMotion 1/2" - 3/4" Overlay Face Frame Hinge * Blum 34807 110° BLUMotion Inset Frameless Hinge Note: If your hinge isn't one of these, you'll have to edit the parameters in a copy of one of the SCAD files, and then export the STL for your hinge type. If you liked this thing, please consider buying me a coffee! Buy me a coffee
