Ultralight Precision Funnel | Thin-Wall

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

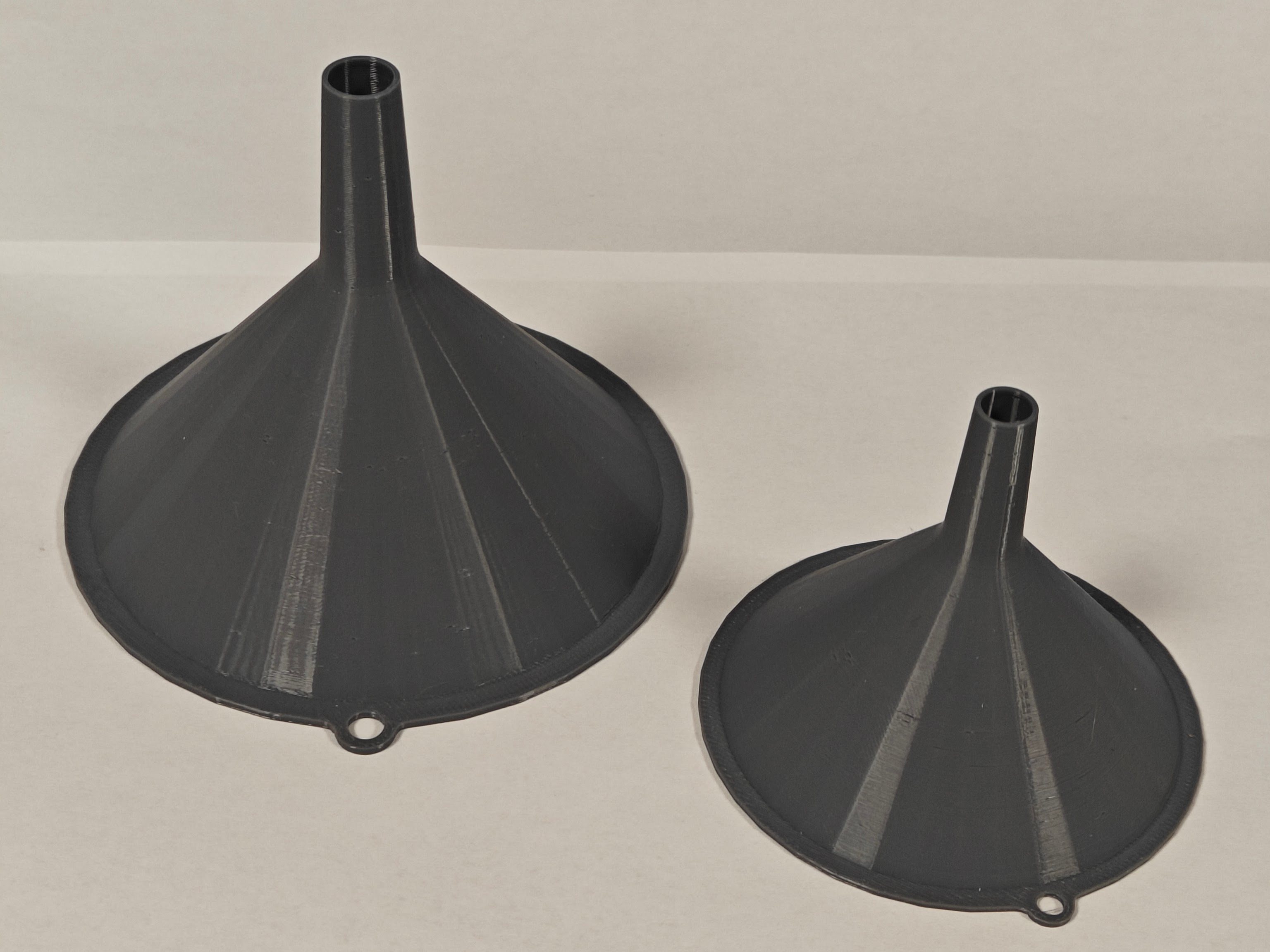

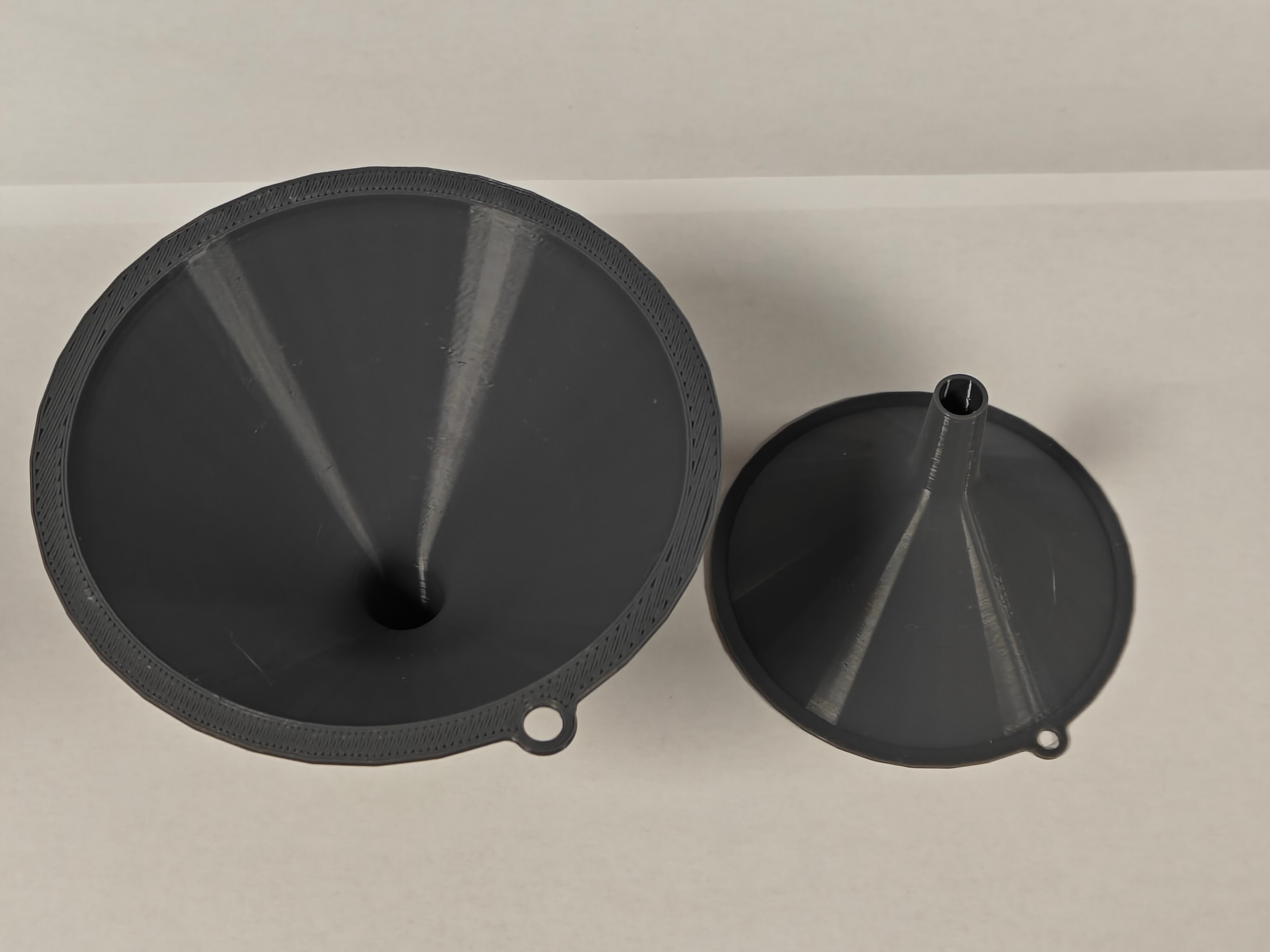

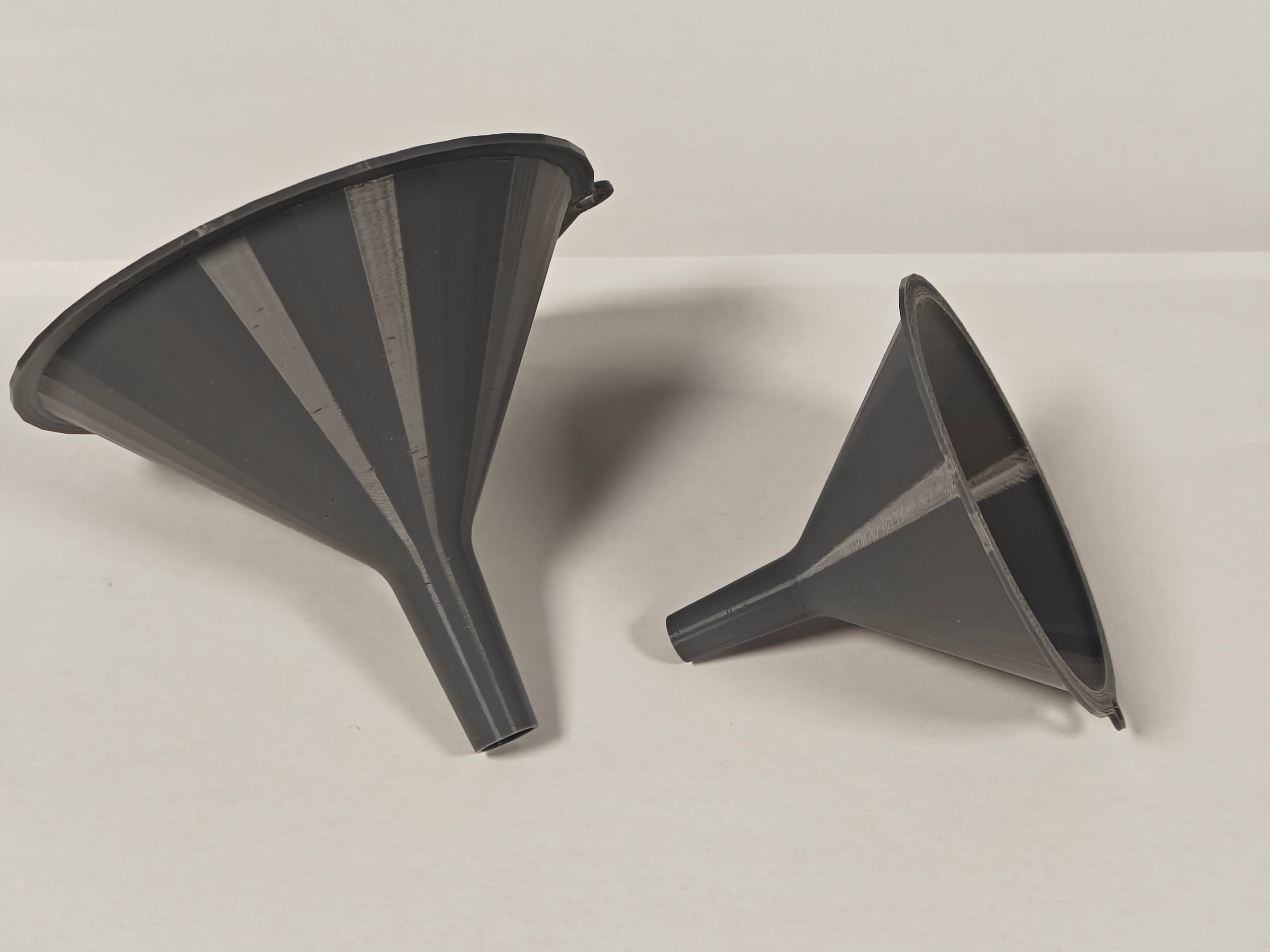

BOM: Printed with ROSA3D High Speed PLA Gray Stop wasting filament on bulky tools. This is a highly optimized, thin-wall funnel designed for speed, efficiency, and precision. Key Features: Ultralight Design: Engineered with a wall thickness optimized for just 2 perimeters. It’s incredibly light and uses minimal filament. Precision Spout: The wide-mouth-to-narrow-tip ratio is perfect for transferring liquids or powders into small containers without spilling. Workshop Ready: Features a built-in hanging loop on the rim, so you can keep it organized on a pegboard or hook. Scalable: The geometry scales perfectly. Need a giant oil funnel or a tiny perfume funnel? Just resize in your slicer. Printing Instructions: Orientation: Print spout up (wide rim on the build plate). This provides a massive contact area and requires ZERO supports. Walls/Perimeters: Set to 2 walls for the intended "ultralight" structure. Material: PLA is standard. Use PETG for automotive/chemical resistance or TPU for a flexible, collapsible funnel.
