Starlink Gen 3 mount

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

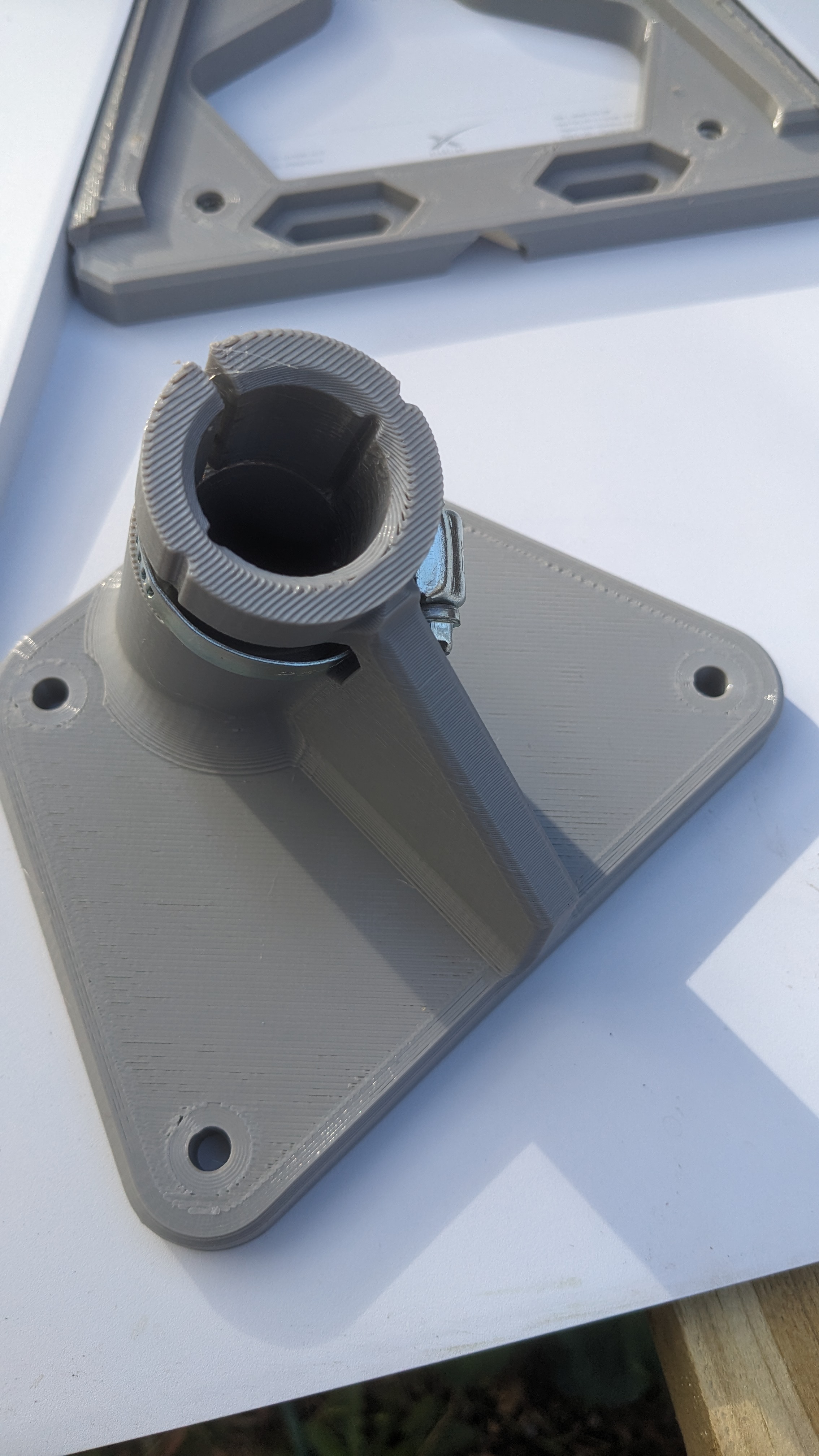

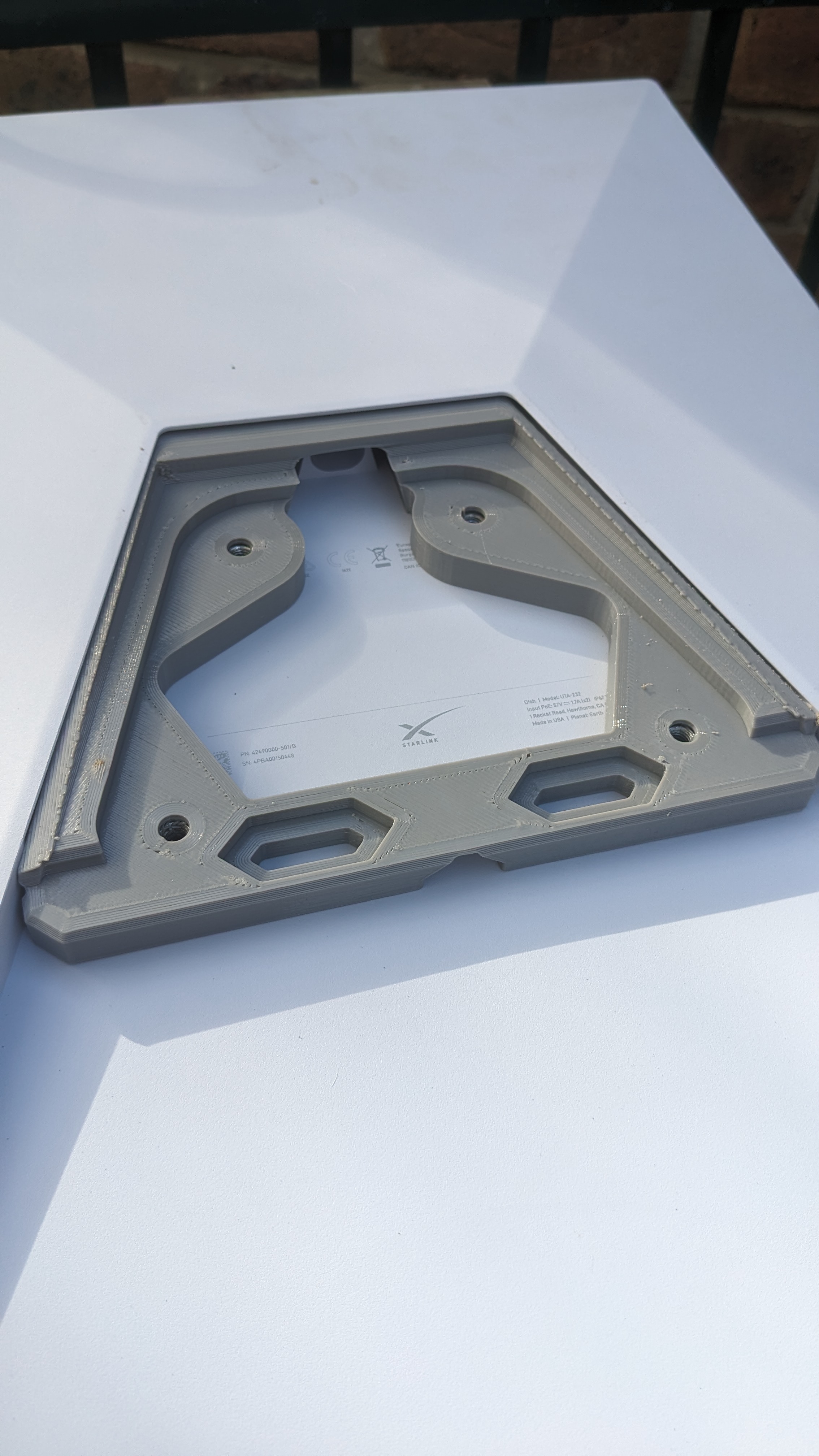

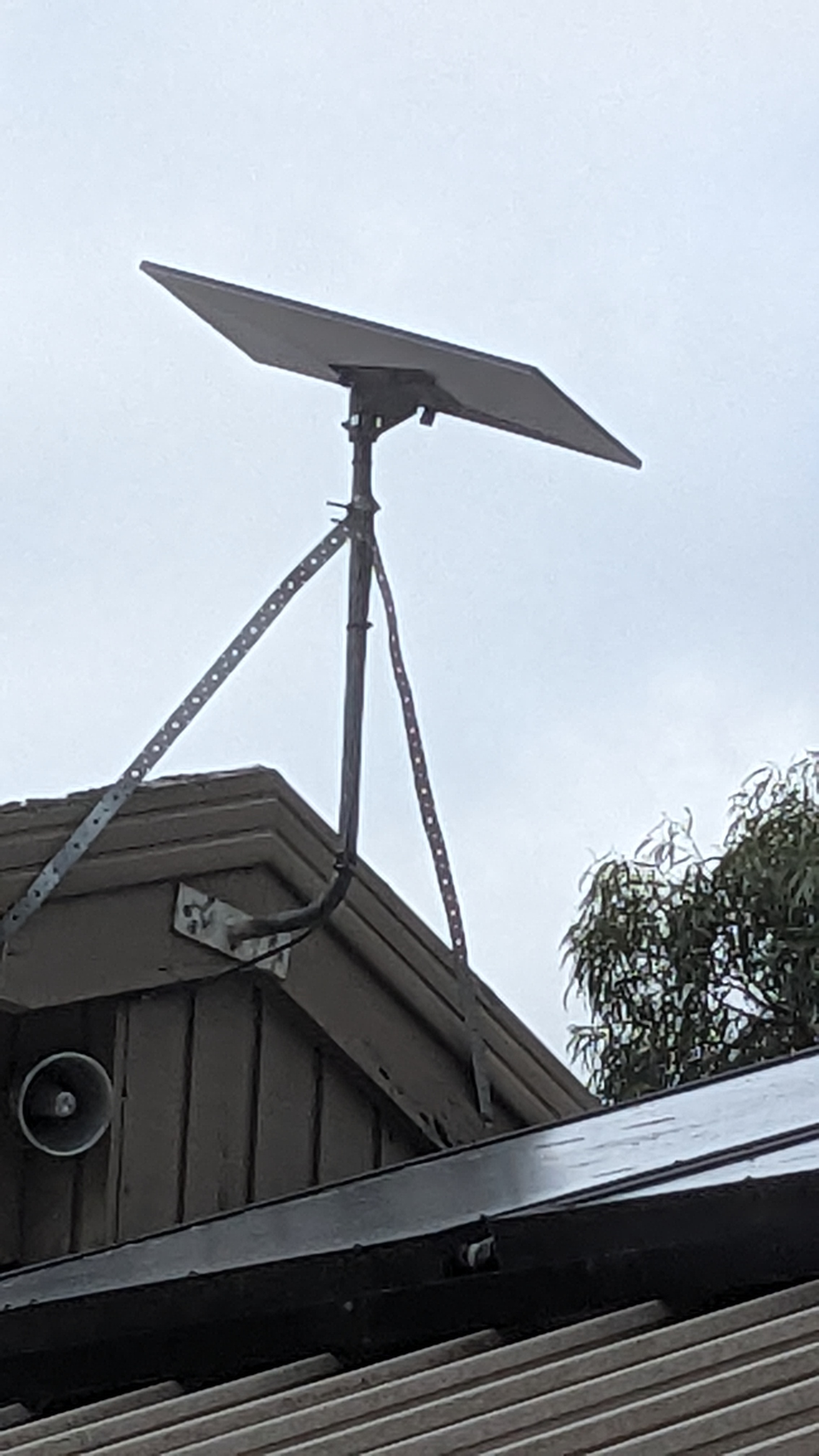

The Gen 3 starlink package only contains the standard kickstand for setting up on the ground. This adaptor allows you to mount the starlink dish to a pole. Print in an outdoor compatible material, eg. ASA or perhaps PETG with as many perimeters as you think is needed (6 or more?) to get the strength for the mount to be outdoors in winds. This uses 4 x M6 bolts and nuts. The bolts I used in the pictures has an additional part printed to a) offset the bolt the correct amount and b) allow this to be tightened with fingers. But you an use just standard nuts and bolts here. This one is set for a 20 degree angle. You'll need the kickstand, the pole mount and 2 retainers, 4 x M6 nuts and bolts (¼ inch might work also) and a hose clamp to tighten around the pole (mine was a 25-40mm). Fits well in the original kickstand location, but may need some mild sanding for the perfect fit. Update: Step file included if you need to customize to fit a your own pole.
