Screw Sizer - metric screws nuts bolts measure jig
SKU 3DPW-pr-616014
$200.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- PLA (filament)
- Colour
- Grey
- Weight
- ~40 g
- Print time
- ~4.5 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

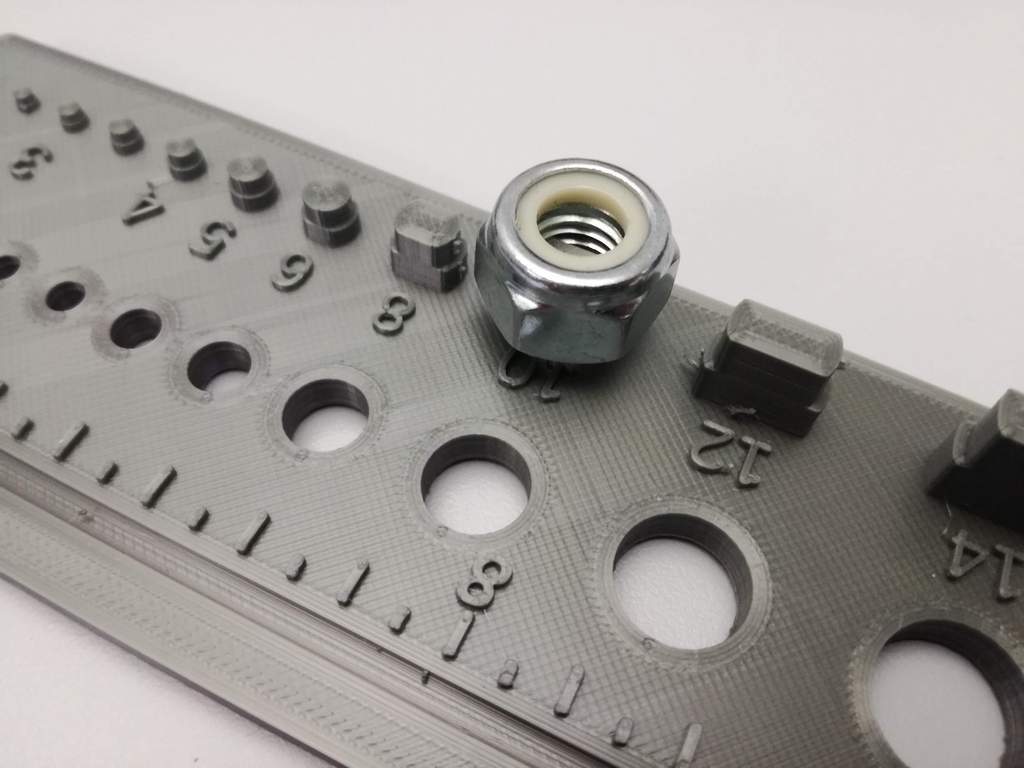

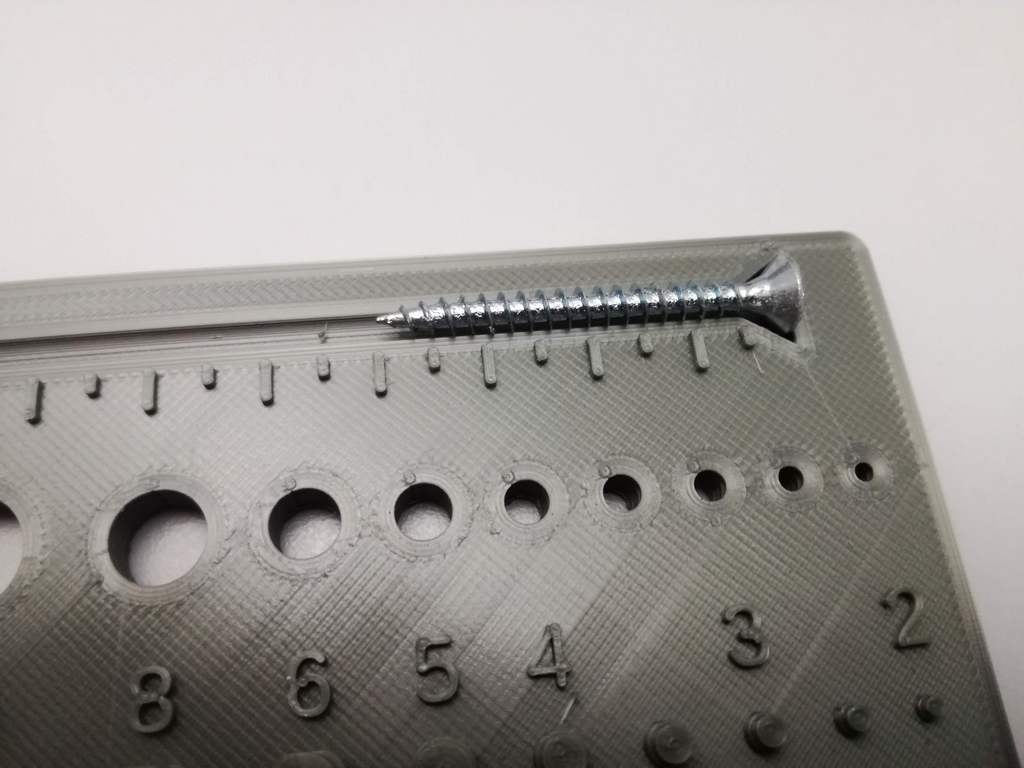

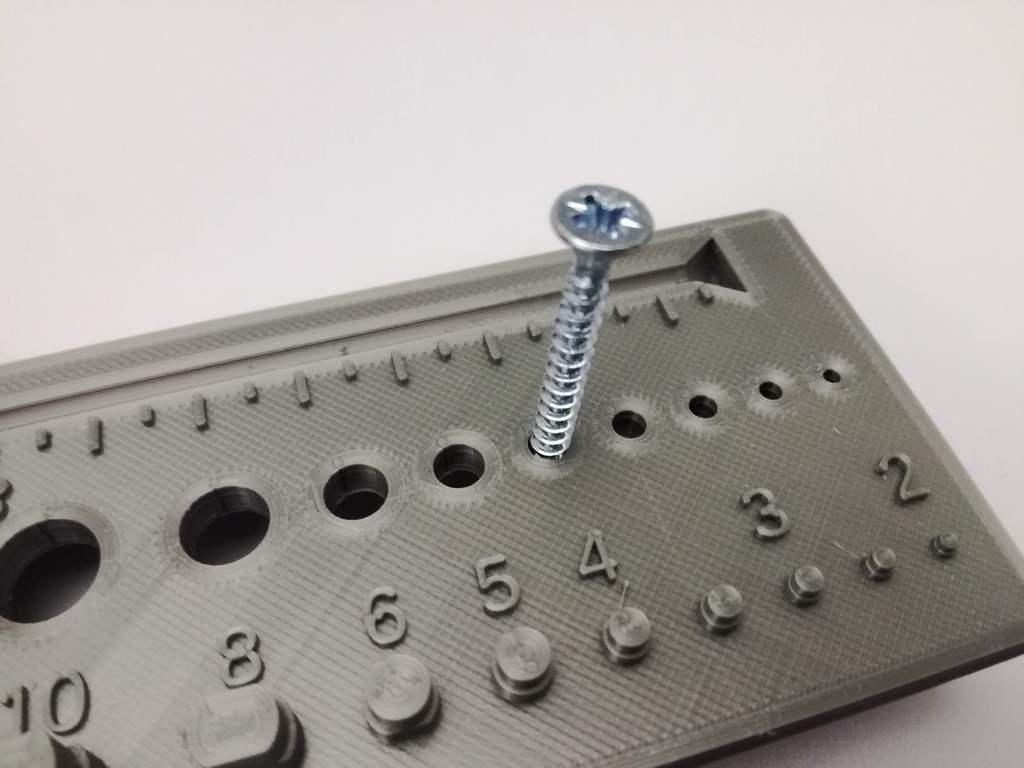

Screw sizer With this instrument it is possible to measure the diameter and length of screws, in metric pitch. It works for both countersunk screws and flat head screws. The shape of the object is flat so as to take up very little space. The cylinders for measuring the diameter have two diameters, to be able to measure both the threaded nuts and the bushings. The source file is provided in openscad format to create a tool to measure exactly the diameters you want. Printable files are provided for screws with diameters up to 10, 14, 16 mm. Print Settings Rafts: No Supports: No Category: Tools
Tags: nuts, jig, woodworking, tools, metric, bolts, resin print, nz made, made to order
Design credit: Original design by Rocco Nicola Lombardi - licensed under CC-BY.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
Screw Sizer - metric screws nuts bolts measure jig is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in PLA (filament) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email hello@3dprintworld.co.nz.
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
