Pulley with Bearing

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

PLA (filament)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

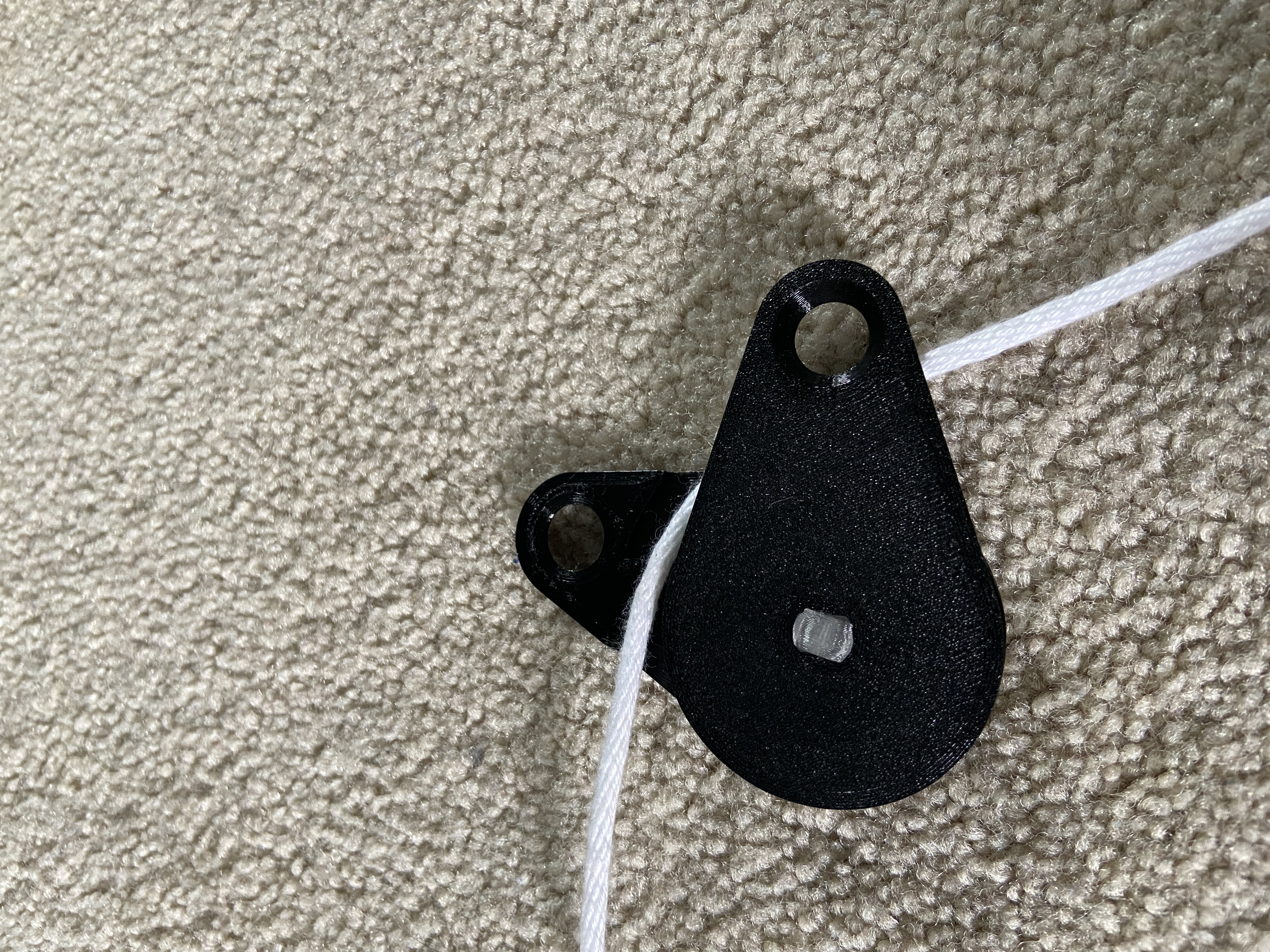

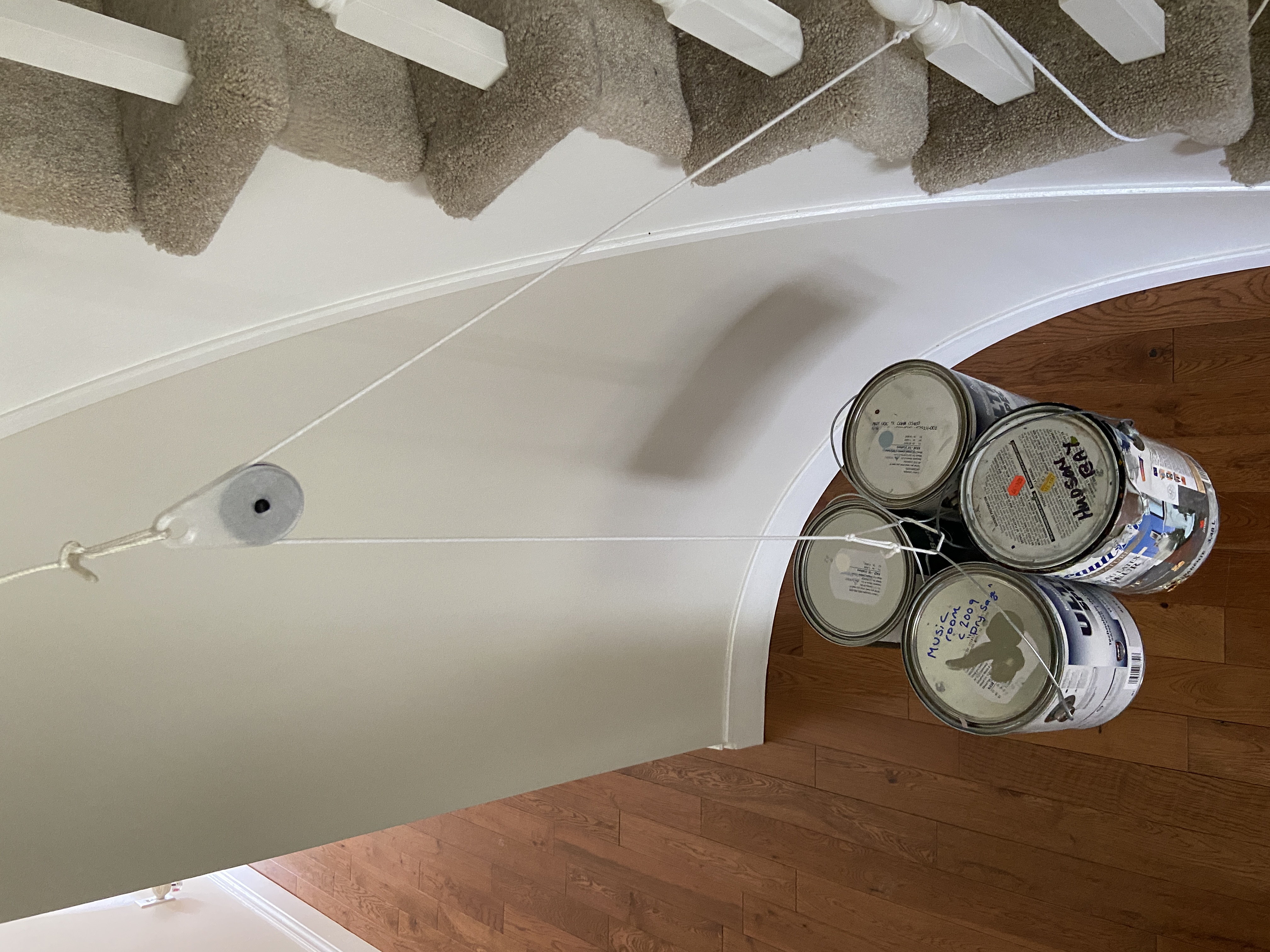

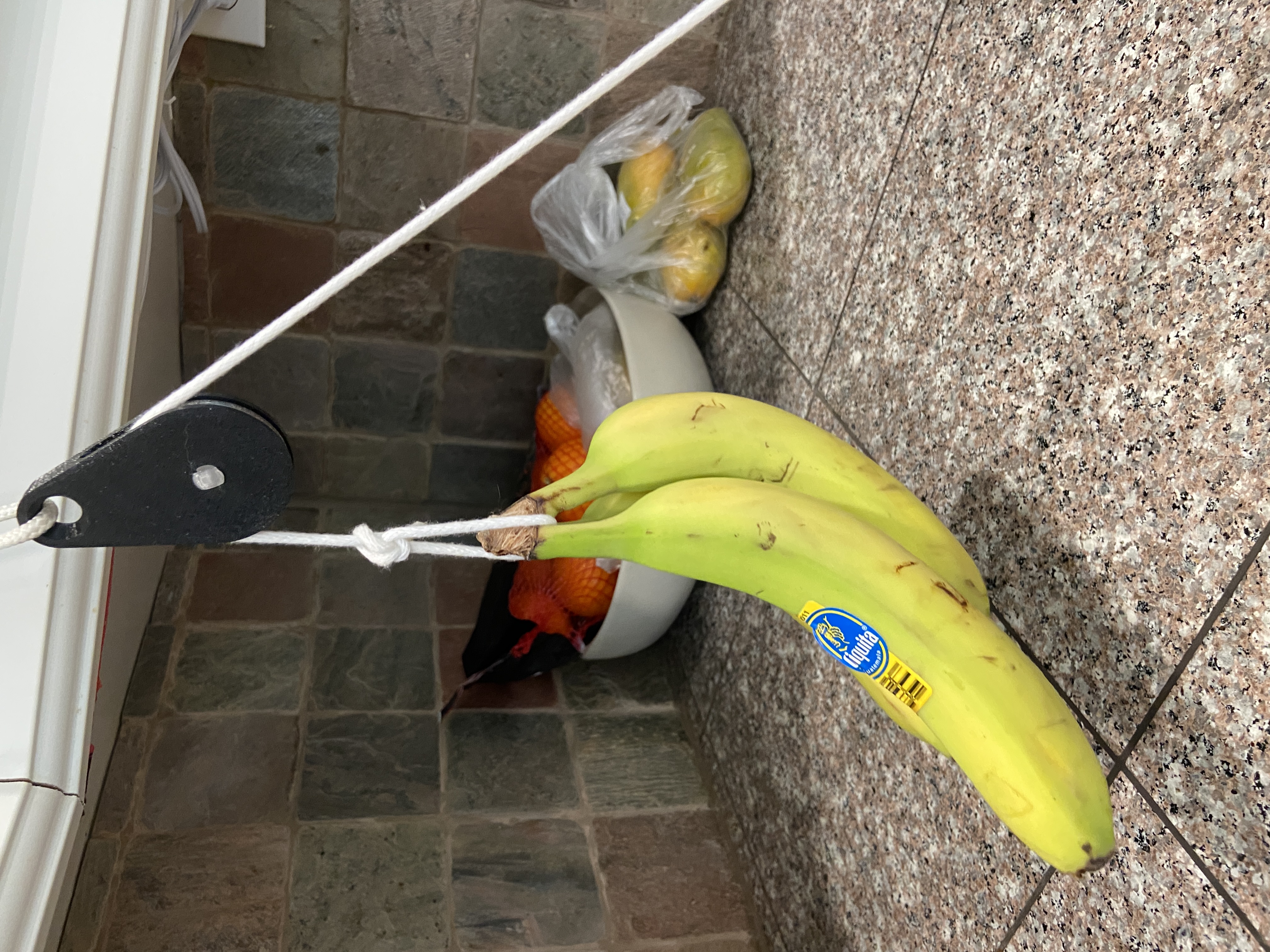

I wanted to design a pulley that was compact, strong and didn't require any hardware. My original no-hardware design was OK for decorative purposes, but when I actually lifted objects, the friction melted the plastic really quickly, after which the pulley didn't turn so nicely. From this, I concluded that hardware is required for a functional pulley. Since I had some 608 bearings kicking around, I incorporated one into the design. Features: Strong design (mine held 40 kg without complaining)No supports neededEasy assemblySwivels open for threading the ropeQuick print (1 hour on my Mk3S)My print settings: PETG, 0.2mm layer height including first layer*, 4 perimeters, 4 bottom layers, 5 top layers, 20% infill. *Note: tolerances were tricky for this design, and it's specifically designed for a 0.2mm layer height, including the first layer. I don't expect any other layer height would work well.
