PPW Mk1 Self-Adjusting Gripper Plywood/Panel Carrier Clamp

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

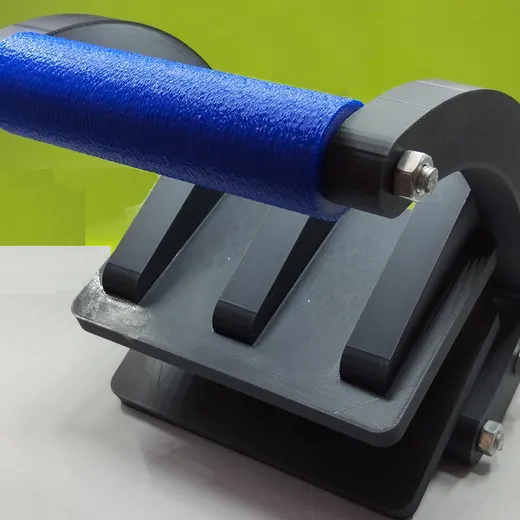

PPW Mk1 Self-Adjusting Gripper Plywood/Panel Carrier Clamp Effortless Panel Transport:Experience unmatched convenience with the PPW Mk1 Gripper Clamp, designed to streamline your workflow and make panel carrying a breeze. Its innovative lever design harnesses the weight of the panels, enabling single-handed operation for effortless transportation. Unrivaled Ergonomics:Featuring an ergonomic grip handle, the PPW Mk1 ensures comfortable carrying without straining your hands or back. Say goodbye to cumbersome lifting techniques – simply place the clamp over the top edge of the panel and lift with ease. Print instructions * 3mf files has also been included with the print settings Material : PETG or ABS Layer Hight : 0.2 Infill Percentage: 10% Infill Type : Gyroid Perimeters : 3 or 4 (recommended) Support : only for the GripperPlateConnector (GripperPlateConnector.stl) for the holes When printing the handle add the Fuzzy Skin with Default options, The handle can also be printed in TPU 95A Optional Hardware:3 x M8x180mm Threaded Rod (See here on Amazon) 6 x M8 Nuts (See here on Amazon) *Within the print files, M8 nuts and threaded rod/screws are provided as optional prints. However, I recommend purchasing the necessary hardware separately for optimal performance Assembly Guide:All parts seamlessly interlock and are secured using 3xM8 threaded rods and 6xM8 nuts. The only parts required to glue are the Short Grippers (ShortGripper.stl) that is affixed to the Gripper Plate (GripperPlate.stl) using a strong adhesive. For detailed assembly instructions, please refer to the accompanying video below If this design helped you and you’d like to support future projects, you can buy me a coffee at https://ko-fi.com/cyberpunkengineer
