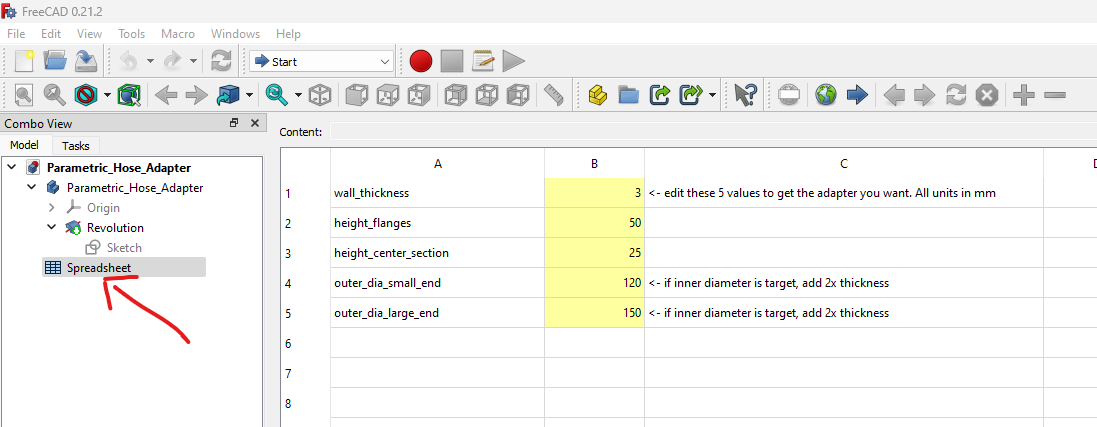

Hi, this is a simple parametric model for generating different sized hose adapters for dust collection systems. Prerequisites: FreeCAD version 0.21.2 or greater To generate a hose adapter, simply open the provided freecad-file and adjust the values in the spreadsheet (see screenshot 4). The geometry of the hose adapter will update automatically everytime you modify a value. After you've adjusted the values to your liking: Click on the hose adapter in the model tree (see screenshot 5)Click on “File” in the top left cornerSelect “Export” and export the model as .3mf filePrint .3mf file.
