Parametric Funnel Redux

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

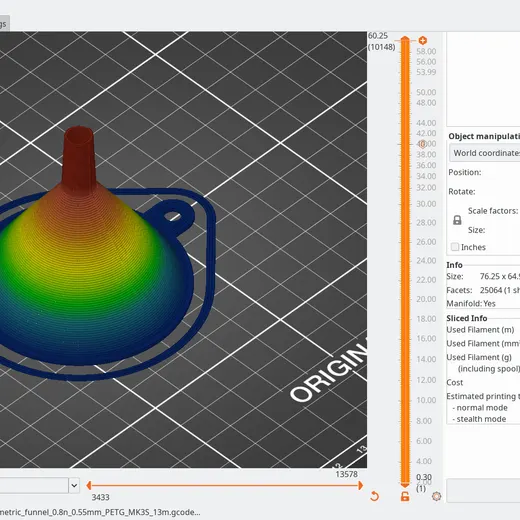

This is an improved version of Tomaae's parametric funnel with additional parameters and the ability to enable/disable “optional” features. It also includes support for a tapered tube section. The table below contains a complete list of parameters. ParameterVariable NameDefaultTotal HeightHeight60mmTube HeightTube_Height20mmFunnel DiameterTop_Outside_Diameter60mmTube DiameterTube_Outside_Diameter10mmTube Taper AngleTube_Taper2.5°Tube Tip AngleTube_Cut_Angle30°Wall ThicknessWall_Thickness1mmHanging RingHanging_RingtrueVent RidgeRidgetrueRidge ThicknessRidge_Thickness1.5Due to the parametric nature of this design and the heavily customized print settings I used, an STL was not included. I encourage users to use export their own STL from OpenSCAD and load it into my 3MF file. I used a 0.8mm nozzle to improve print speed. 2022-07-24 Update: add ridge thickness parameter to improve vase mode printing quality. Update sample 3mf to support vase mode “out of the box”. Note: I strongly recommend printing this in PETG due to its excellent chemical resistance.
