La-Z Boy Recliner Footrest Part

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

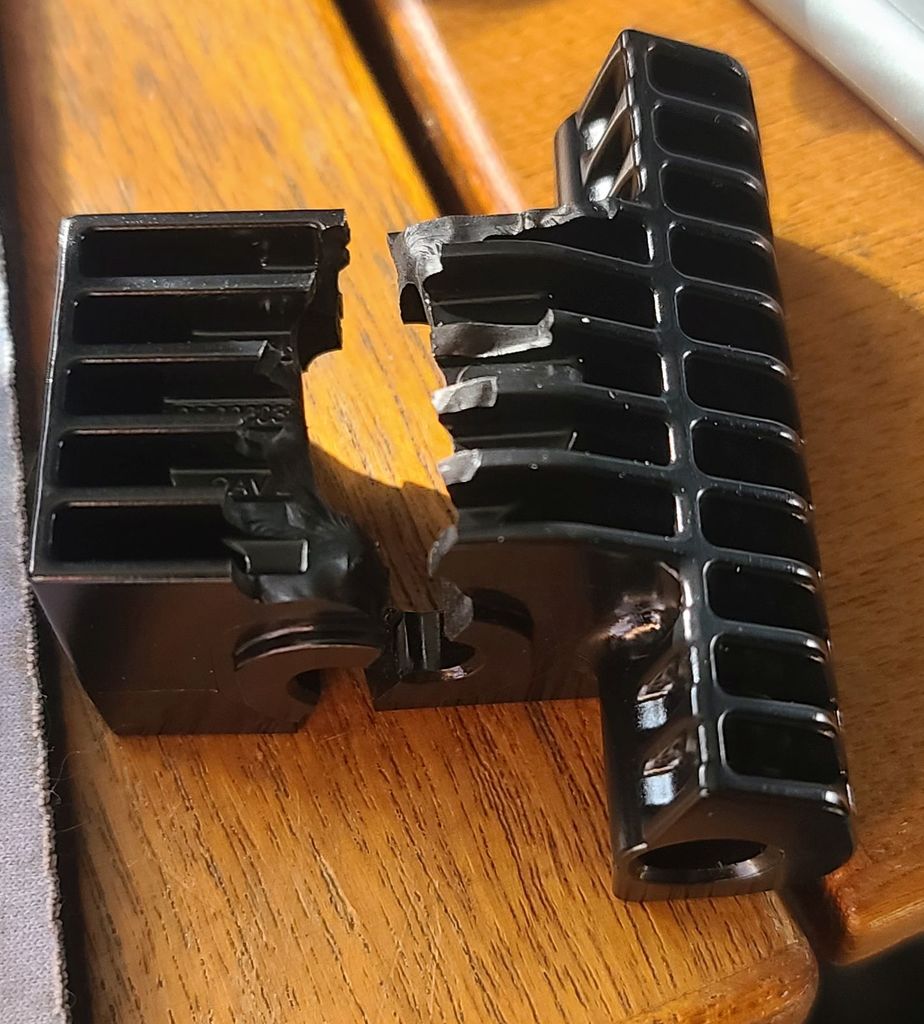

Remix of BigSlowTarget's model. This is a replacement part to fix a La-Z-Boy recliner if the original plastic piece that holds the footrest mechanism together breaks. If the footrest is broken but you can visibly see the motor still functioning when operating the remote with the chair flipped over, this is likely the part you need. You'll probably find a cracked plastic piece like the one in the picture. The main reason for this remix was to remove the obstruction in the bigger hole. The original model was already excellent, but the bigger hole was obstructed in the middle and needed to be drilled out to allow the big pin to fit. This remix fully clears the big hole to forego the drilling step. Make sure to print with high infill, perimeter count, and solid layer count - I used 5 walls (2mm thick), 10 top/bottom layers (also 2mm thick), and 20% infill to be safe. Supports shouldn't be needed.
