Jointer knife sharpening jig

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

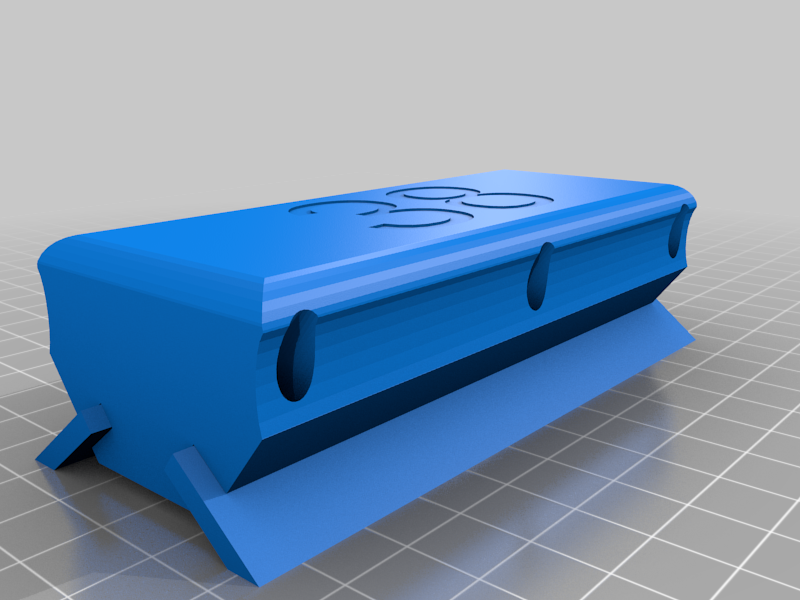

A jointer knife sharpening jig, customizable for whatever dimensions your jointer knives are. You'll need 4x M3 nuts, and 4x M3 screws (12mm long worked for me). Make 100% certain you print it standing tall, not flat! Otherwise tightening down the screws may cause it to delaminate. Bonus: if you have a leather strop and polishing compound, you can strop your jointer knives by removing one of the knives from the jig! Edit: Now featuring configurable # of screws! Print Settings Printer Brand: Creality Printer: Ender 3 Rafts: No Supports: No Resolution: 200 Infill: 20 Filament: Hatchbox PLA Notes: 0.4mm nozzle 3-6 walls/perimeters (more == stronger) sliced with Prusa Slic3r at a 0.2 layer height, and set to adaptive variable layer height. Hatchbox PLA at 210c Bed at 60c 35mm3/s max volumetric speed Category: Machine Tools
