Gridfinity Bin Generator

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

PLA (filament)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

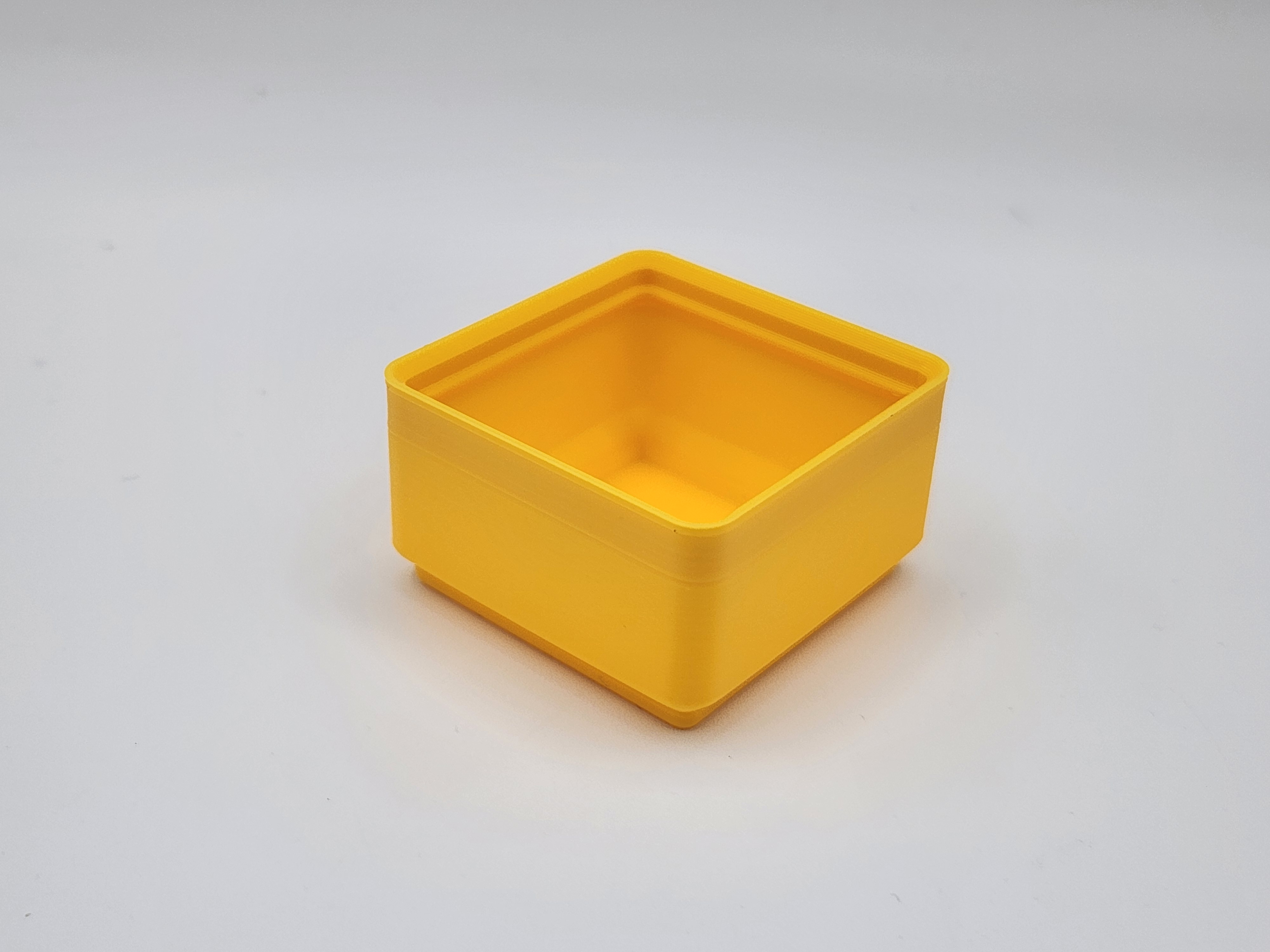

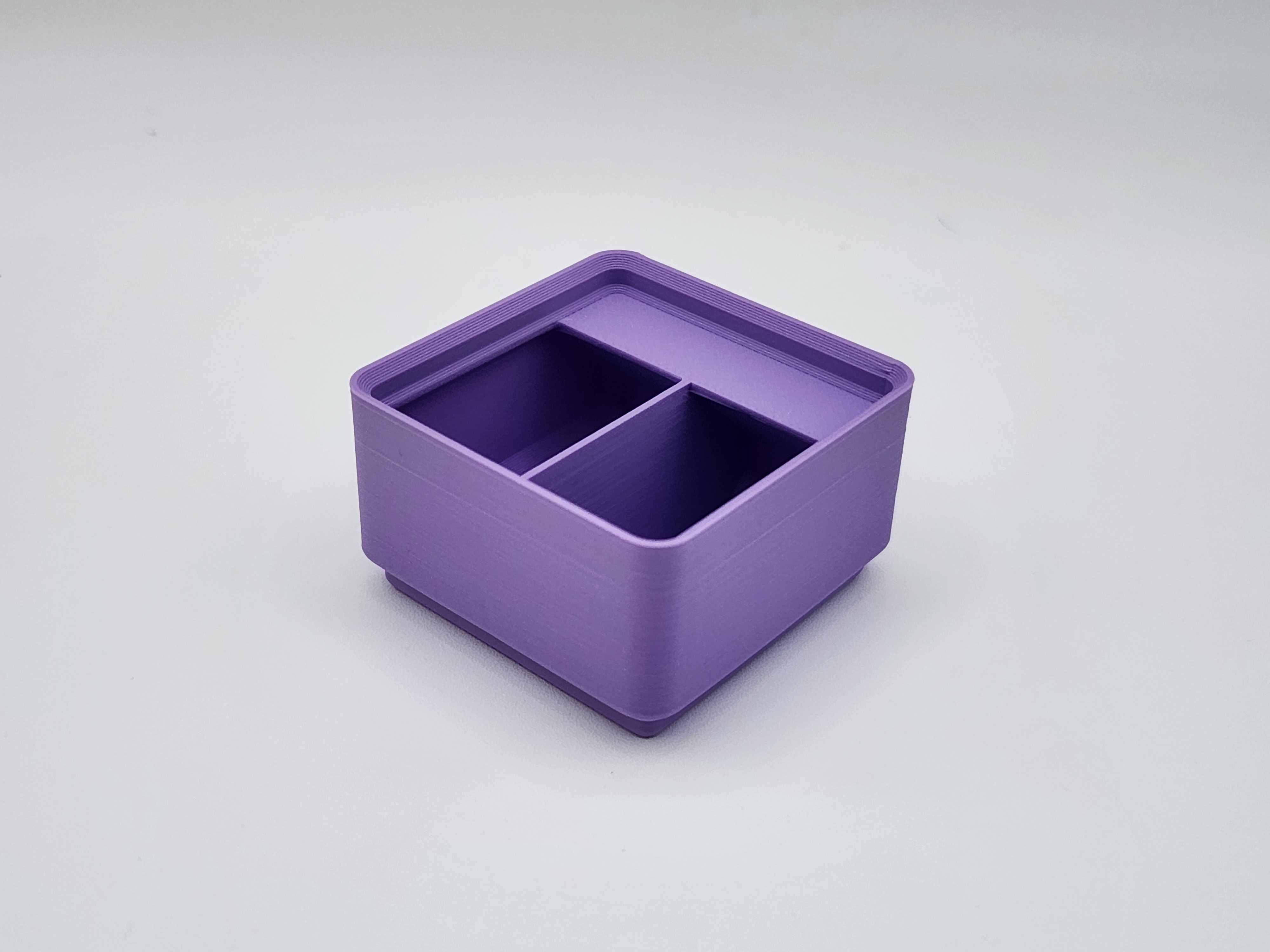

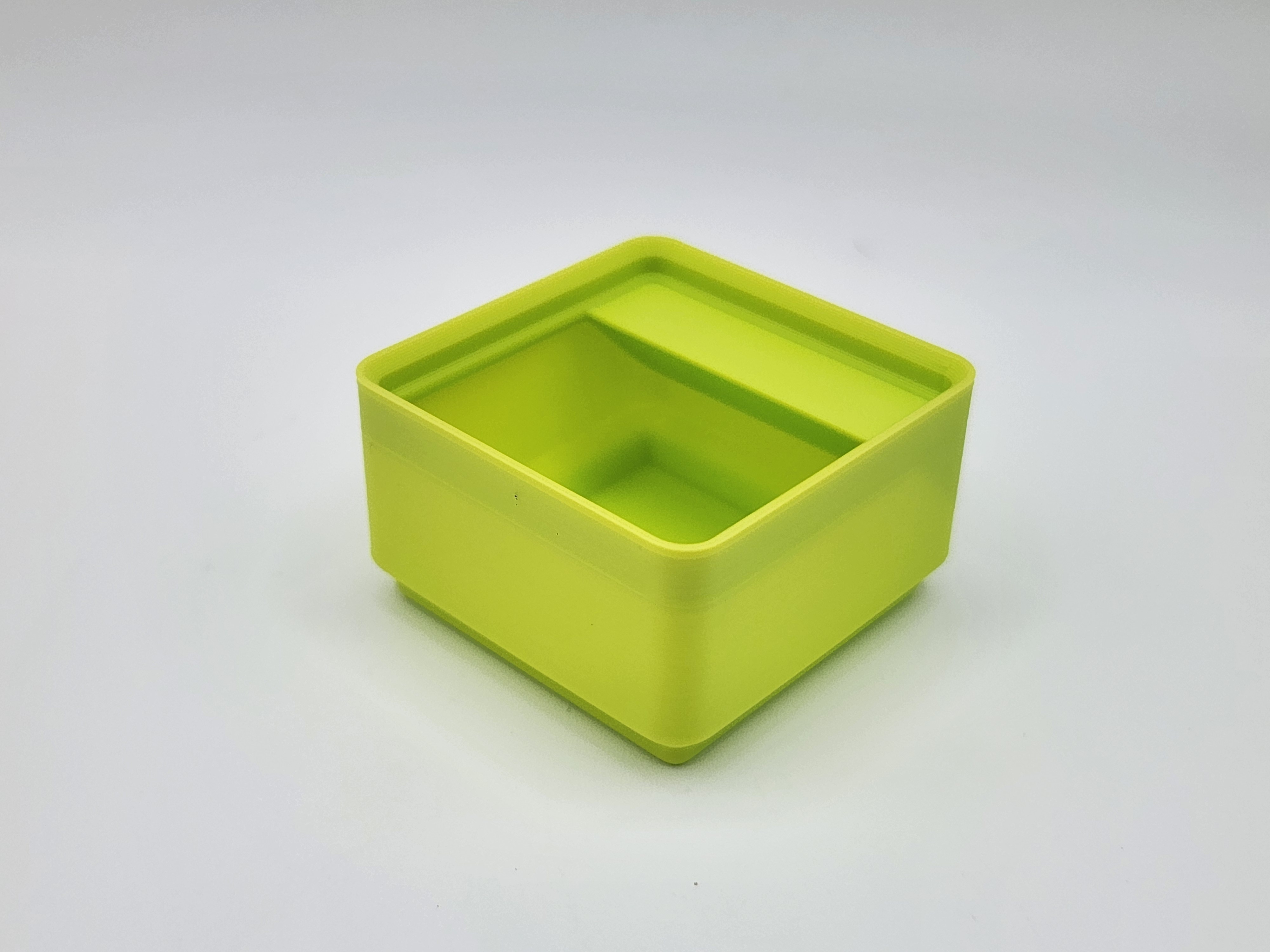

There are so many great gridfinity bins already here on Printables, but I couldn't find exactly what I needed. Therefore, I created this collection, and am also sharing the Fusion360 source files so that you can generate your own. The things I was looking for which are incorporated here: Basic, labeled, and divided bin stylesFull-depth bins for increased storage (so no space for magnets), with a “scoop” style bottomSupporting bins from “1 wide x 1 deep” up to “6 wide x 6 deep”Supporting bins as small as 1 gridfinity unit tall (note: each gridfinity height unit = 7 mm)Customizable label depths (e.g. I wanted to use labels that were exactly 3/8", or 9.6 mm, tall)Allow for the label shelf and divider walls to be moved up or down (i.e. see the ‘Label_Vertical_Offset’ parameter)Adjustable wall and base thickness (e.g. I wanted bins with .8 mm walls and base)I've included generated STLs for what I believe are the commonly needed bin configurations (each ranging from 1u to 8u in height). The source Fusion360 design files are also included though, which are setup in a fully parametric fashion so that you can generate others as needed. If that is new to you, check out the explanatory video for one of my other models which is setup in a similar fashion.
