GEN2 Steel Sheet Holder V2 For Prusa and Bambu Lab

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

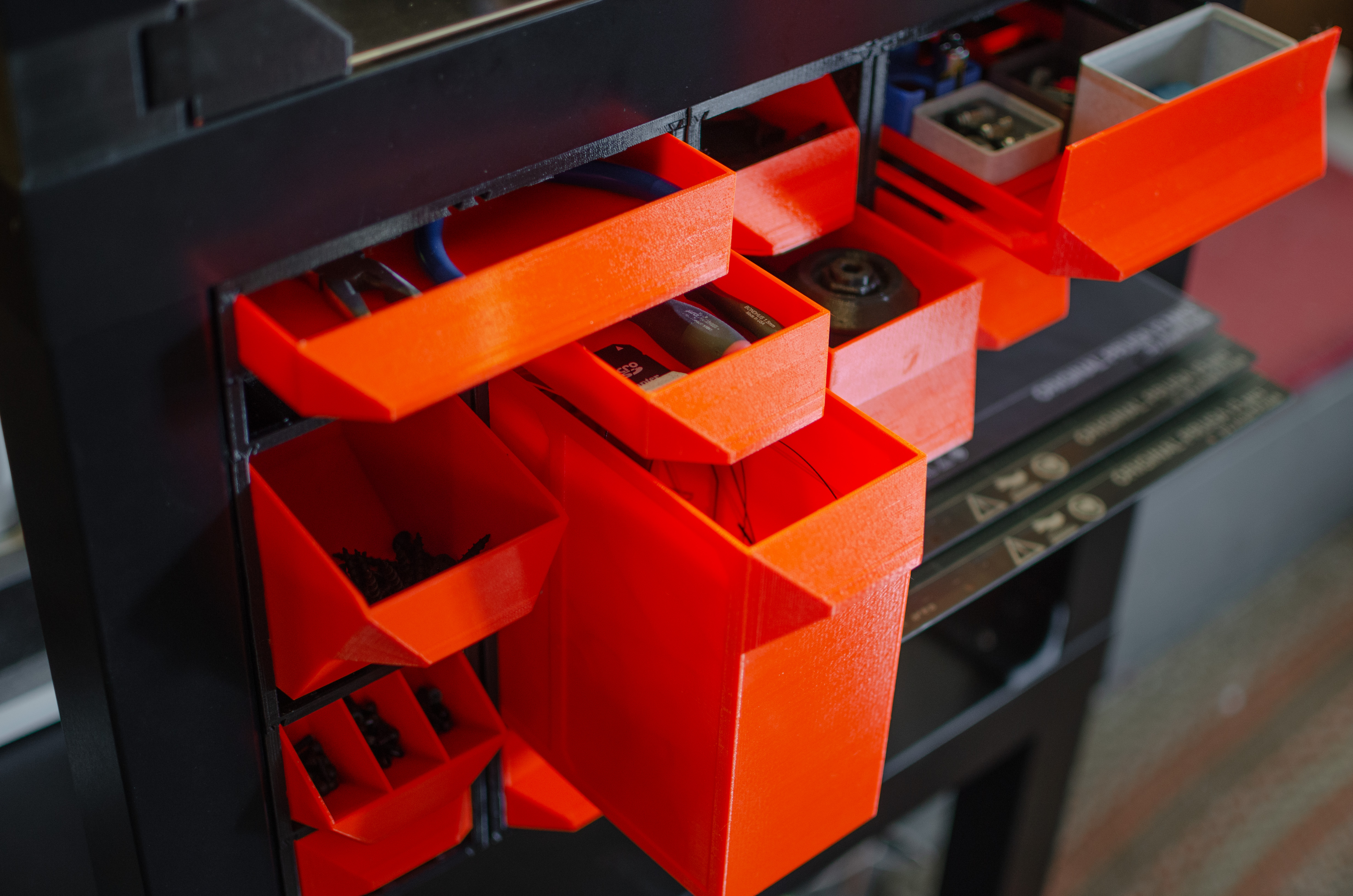

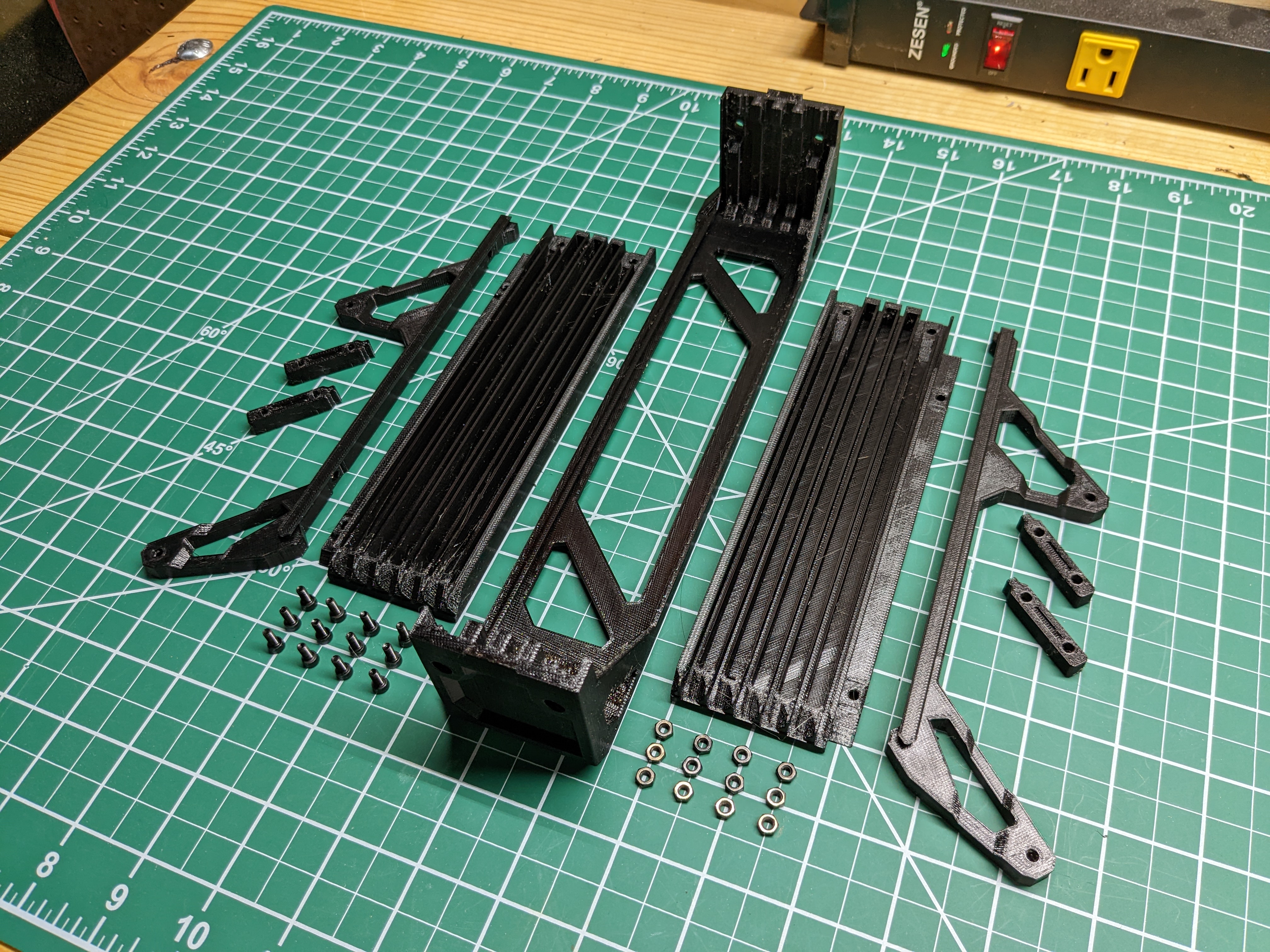

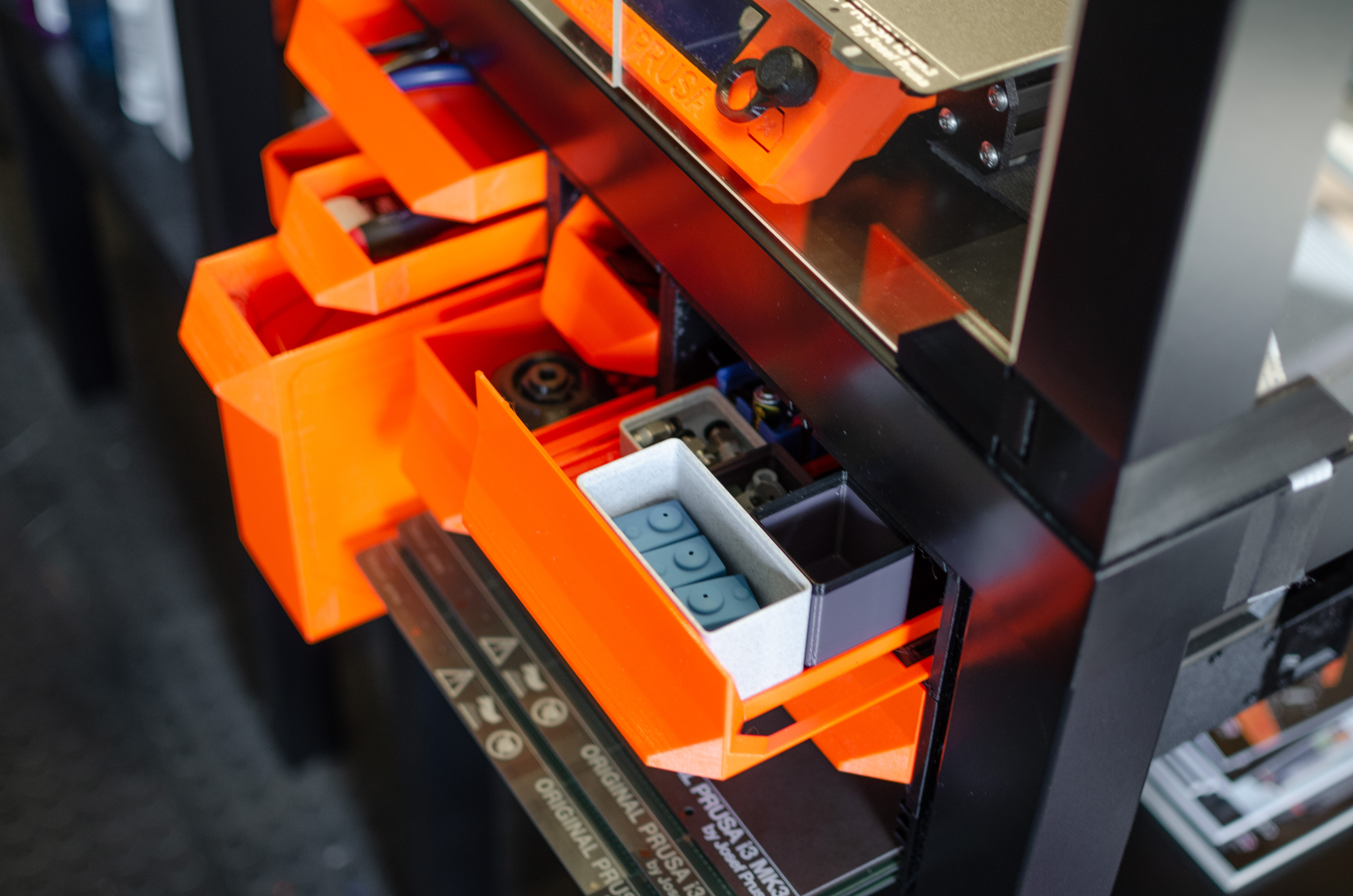

JERRARI3D.com Modular solutions for storing steel sheets for the PRUSA i3 (MK2.5 and MK3) and Bambu Labs (X1 and P1P) Unlike my original steel sheet holder the GEN2 Steel Sheet Holder V2 does not require a backer mounted on the underside of the table directly behind it, this allows you to install it under any other GEN2 storage drawers and trays. It includes optional magnet slots on the redesigned back piece to pull the drawers into place. NEW: If you have a Prusa Mini, Creality Ender 3, or any small to mid size printer with removable steel sheets, then the GEN2 Adjustable Steel Sheet Holder is what you want. Originally designed for the “Original Prusa i3 MK3 ENCLOSURE…", The Lack drawers have found their way on to many desks, workbenches, and other tables as well. Now with the Gen2's rail design you can quickly swap the storage units between work areas. Features: • Gen2 rails allowing quick and easier swap-ability and combinations of many Gen2 Storage System designs. • Steel sheet holder is now one unit and can be installed directly to the GEN2 Rails or placed under any combination of full sized GEN2 drawers or trays. HARDWARE • Screwdriver • Countersunk woodscrews: (Metric: 4x25mm to 4x16mm) or (SAE: #6 or #8 up to 1" long) • Drill bit that is smaller diameter than the wood screws • Pen, Marker, or Scratch Awl • Magnets (Optional): 10x5x2mm or 10x2mm • M3 nuts • M3 Screws M3x8 - M3x10 UPDATES Bambu Labs X1 and P1PModels now created and added to support these printers! Thank you khrillian for the measurments Updated: V1.1 corrected for proper sheet width INSTRUCTIONS *Note: Supported Printer Examples are for size reference only. These models are designed Specifically for the Prusa i3 MK2.5/MK3 and Bambu Labs X1/P1P. This video covers the full assembly and installation of the GEN2 Steel Sheet Holder V2 • The Gen2 Steel Sheet Holder requires 3 rail units. The easiest way to add 3 units is by printing a Gen2 Rail Double Rail and a Gen2 Rail Single. Gen 2 Rail SingleDownload Here Gen 2 Rail DoubleDownload Here • Use templates to mark the hole locations on the surface you are mounting the desired sized rail to. • Drill out marked locations using a drill bit smaller than the diameter of the wood screw you will be using. • Prep the rail for installation by installing M3 nuts into the hexagonal holes. You can use a M3 screw to position and tighten the nut in place. • Install the rail using wood screws, use at least 4 screws on the outer corners to mount the single rail and and 6 to mount the double rail. (extra screw holes are available if you plan to stack more than 2 rows of drawers or contents of heavier than normal weight.) RECOMMENDED PRINT SETTINGSFilament: PLA (PETG or ABS for heavier duty storage) Nozzle Size: 0.4mm Print Height: 0.2-0.35mm Infill: 10-20% GEN2 COMPATIBLE PRINTSGen2 Adjustable Steel Sheet HolderDownload HERE Gen2 Open Bin Lack DrawersDownload HERE Gen2 Gridfinity DrawersDownload HERE Gen2 Parts DrawersDownload HERE Gen2 Slim Lack Enclosure DrawersDownload HERE Gen2 Modular Lack Enclosure DrawersDownload HERE Gen2 Modular Tilt DrawersDownload HERE Gen2 Large Modular Tilt DrawersDownload HERE Gen2 Large Enclosure BinsDownload HERE PLAN YOUR BUILD IN SECONDSNot sure which parts fit together? The free GEN2 Planner lets you design your build in 3D, checks every part against your printer size, and hands you the exact print list · no guesswork, no wrong sizes: gen2planner.jerrari3d.com SUPPORT GEN2 AND UNLOCK MOREThe GEN2 system is free and always will be. If it saves you time or space, you can support the project by joining the Jerrari Club (CAD and STEP files, early access, premium drops) or picking up a premium faceplate collection · it means a lot and directly fuels new designs. • Jerrari Club: Join here • Premium faceplates: Decor Faceplate Collections
