Fully 3D Printed Bike Chain Gear Fidget Toy/Spinner

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

PLA (filament)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

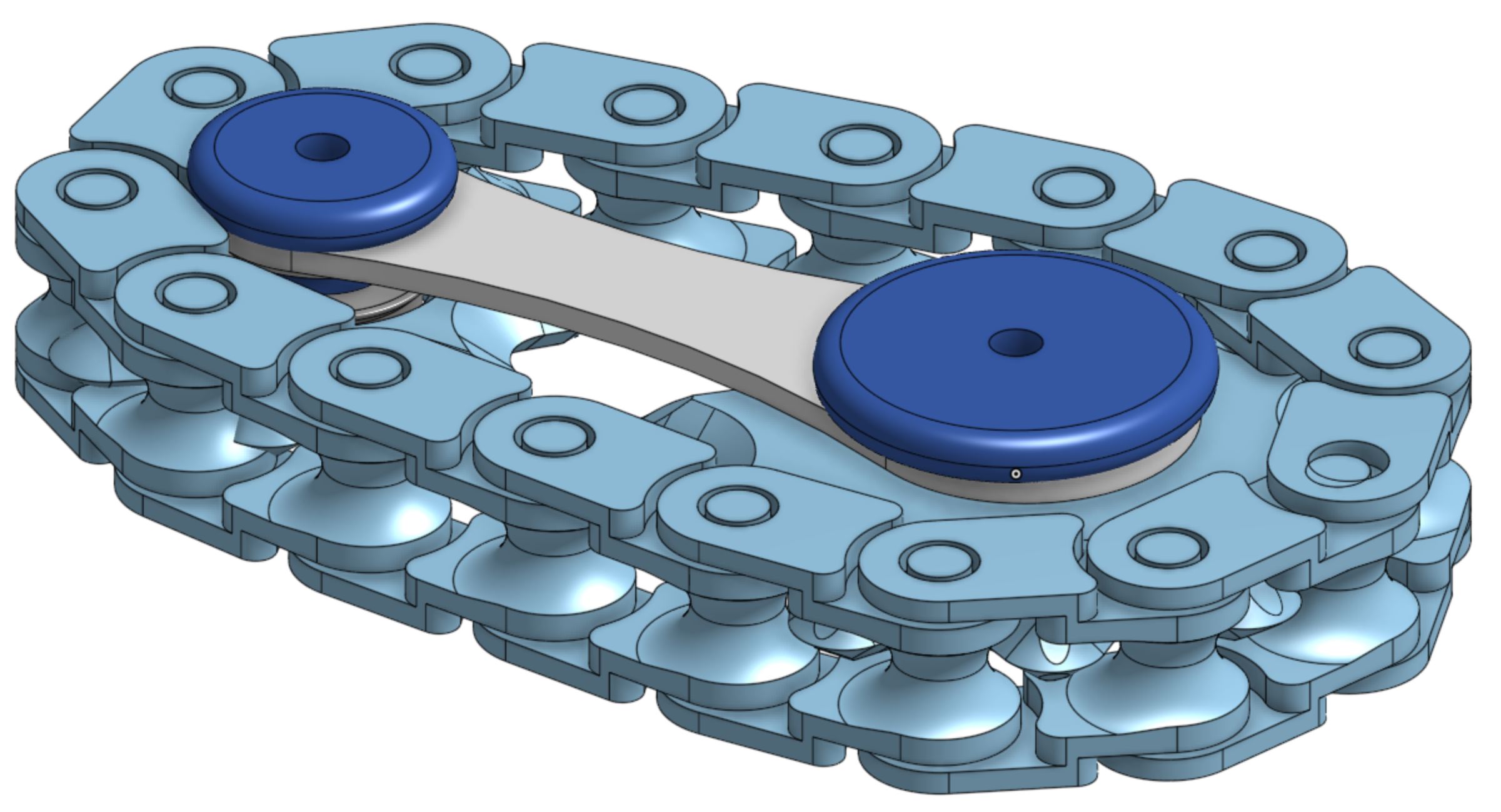

This is my take on a fidget toy I saw online. It is easy to print, even with bad printers, requires no support and works without lubrication. Parts list: 15 chain links (can be printed together or individually)A 10-tooth sprocket with rotating bearing (print-in-place)A 7-tooth sprocket with rotating bearing (print-in-place)2 chain spinner arms2 large caps2 small capsPrint Instructions: Every part should be printed without supports. There are TWO different clearances for the sprockets, 0.225 in and 0.15 inches. The large clearance should work for all printers. The arms have a slight raised edges around the holes on one side so make sure that it is printed in the correct orientation. Post- Processing and Assembly: Note: The chains may require some light sanding to get it to move freely Assemble the sprockets first. Line up the arms with the corresponding sprockets. Use the Caps to snap the pieces together. Then wrap the chain around and connect the ends together. Other Notes: It can be printed at .28mm layer heightI have had success down to 85% scale
