Flex Clamp
SKU 3DPW-pr-844916
$41.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~40 g
- Print time
- ~4.5 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

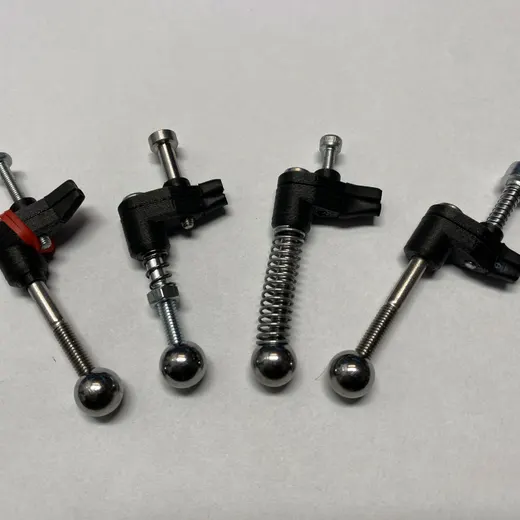

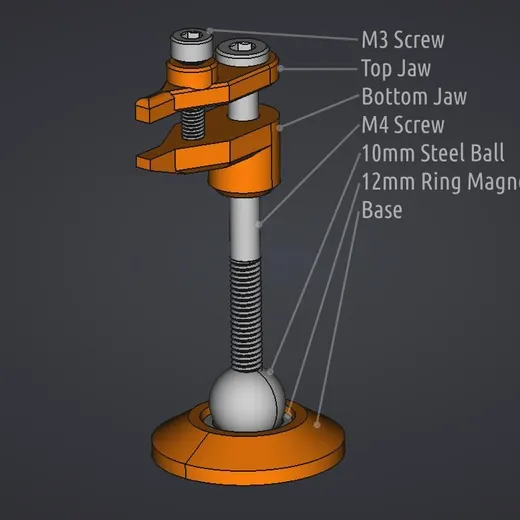

Hallo and guten Tag, These are my Flex Clamps. The design is simple and universal. The design is very flexible in what Parts you can get. Besides the printed parts you will need: - 12x3 Hole 4MM Ring Round Neodymium Magnets - Stainless Steel 10mm M4 Threaded Ball - M4 DIN912 Half Thread Hex Screws - M3 DIN912 Hex Screws (between 16 and 25mm) Optional for the base to have more friction: - Rubber O-Ring 11x1.5 or OD-11 ID-8 For the tension: Rubber band, or ball pen spring or a bottom spring with ID bigger than 4mm. For example Length 15mm, 0.6mm wire diameter and 6mm OD like these. If you go with the bottom spring you will also need a M4 nut. The Top Jaw of the Clamp is designed to fit snugly onto the M4 screw. You might need some force to get it on, also depending on your printer you might need to use superglue if it fits to loose. If you have any questions ask them here or under the YouTube video, I'll try to answer them quickly and if necessary update this description
Tags: soldering, helpinghands, clamp, ergonomic, adaptive, resin print, nz made, made to order
Design credit: Original design by Make'n'Modify - licensed under CC-BY-SA.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
Flex Clamp is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email hello@3dprintworld.co.nz.
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
