Enclosures & Cases
Enclosure - Hinge
SKU 3DPW-pr-71934
$25.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~40 g
- Print time
- ~4.5 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

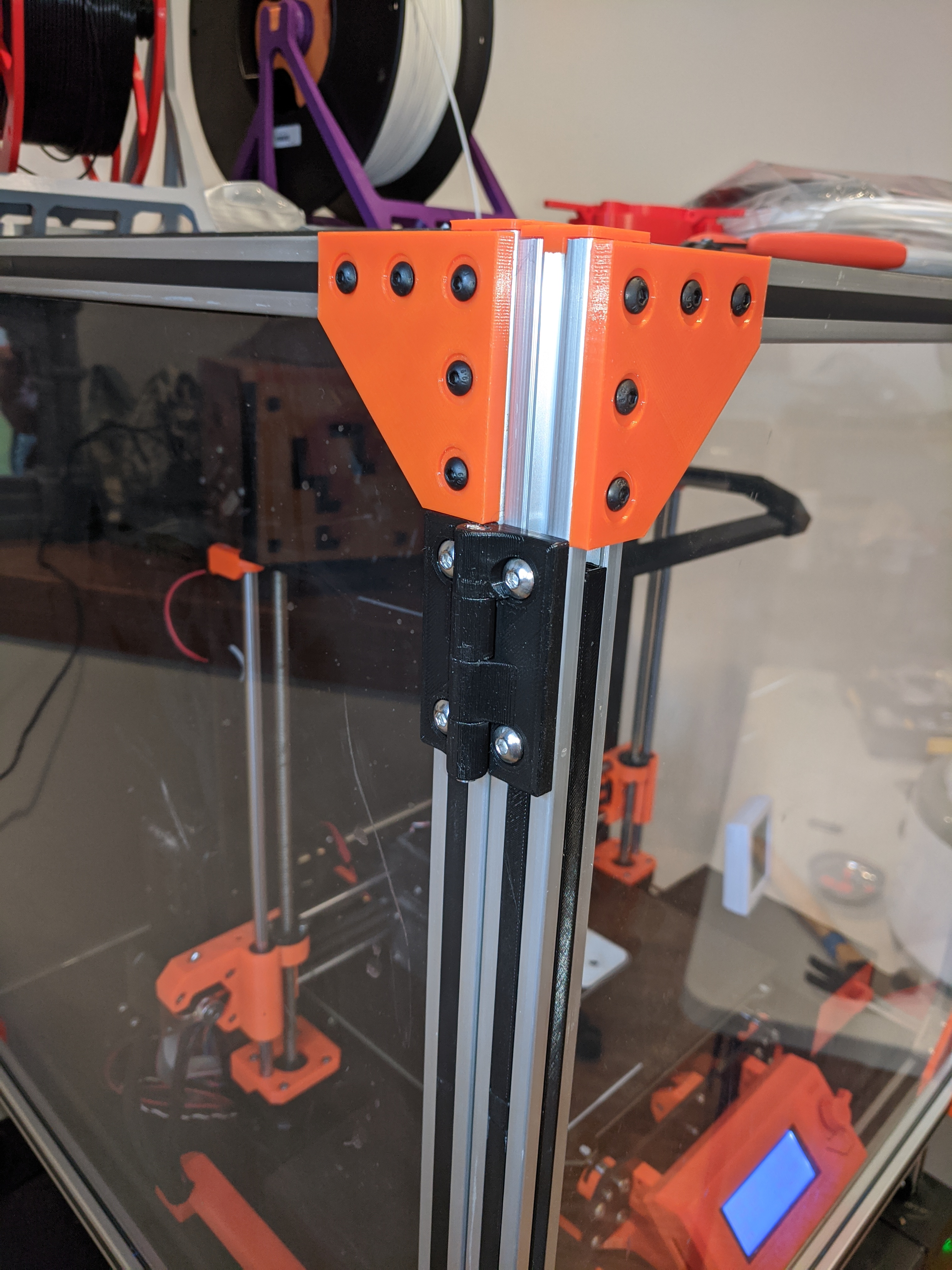

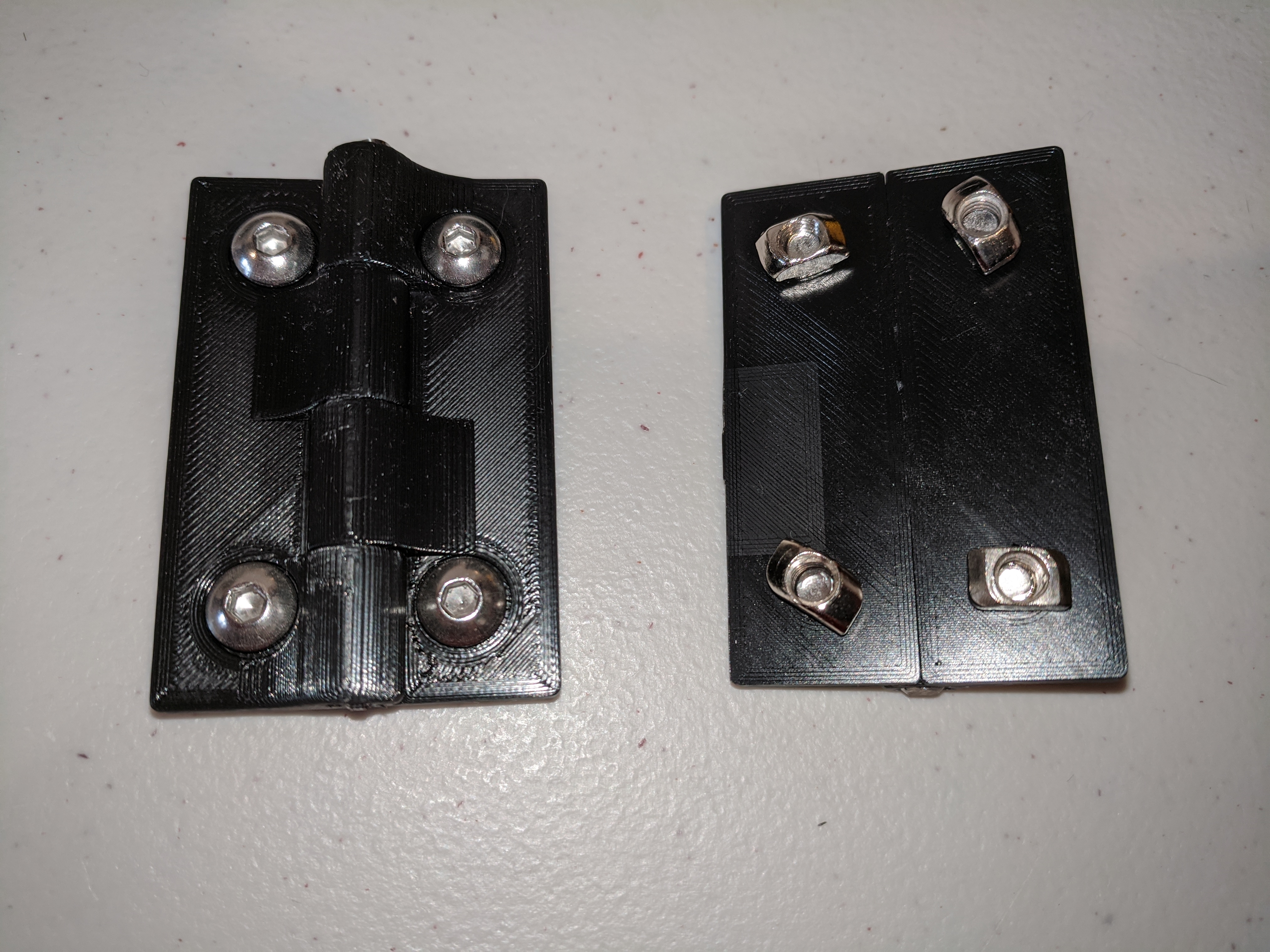

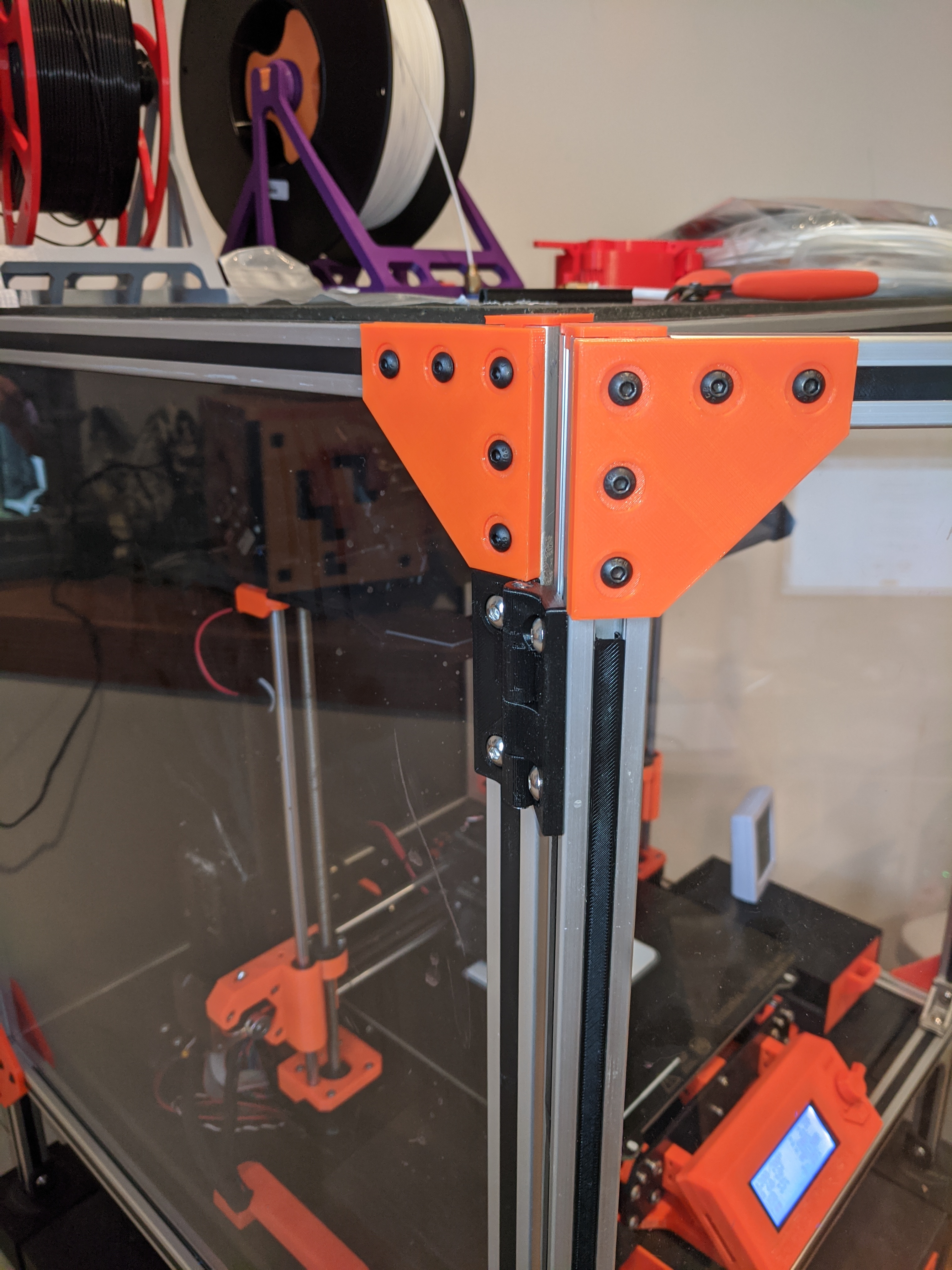

This is one of my first designs using Fusion 360. I wanted a hinge that was strong enough to hold a 54 cm door made up of 2020 aluminum extrusion and a Plexiglas pane. The hole for the 5 mm shaft is intentionally tight to prevent the door from sagging (you may need a hammer or mallet to insert the shaft). The hinge should be printed in PETG with 100% infill and "Support on Build Plate Only". With these settings the 54 cm long door only sags about 3 mm. Build of Materials 2x 5 mm linear shaft 60 mm long (or you can get a longer one and cut it down to size) - https://www.aliexpress.com/item/5mm-linear-shaft-26mm-40mm-50mm-60mm-120mm-200mm-300mm-400mm-500mm-harden-linear-shaft-chrome/32884366852.html?spm=a2g0s.9042311.0.0.27424c4dw0PjDv
Tags: hinge, 2020extrusion, resin print, nz made, made to order
Design credit: Original design by chking - licensed under CC-BY.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
Enclosure - Hinge is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email hello@3dprintworld.co.nz.
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
