Dewalt DW735 to 4" 90° dust collection adapter
SKU 3DPW-pr-10433
$58.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~40 g
- Print time
- ~4.5 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

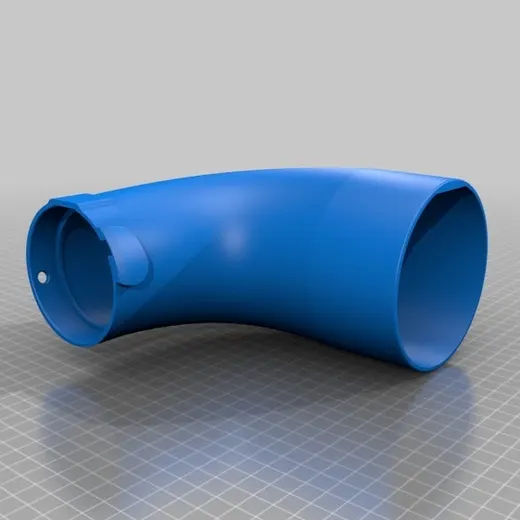

A 90° degree transition from the Dewalt DW735 dust collection port to 4". Here I'm using a Rockler quick connect but it'll also work fine with a 4" flex hose and it may work with various other fittings but I haven't verified this. The Fusion file is included so you can modify it to fit your configuration. Print instructionsCategory: Tools Print Settings Printer Brand: Prusa Printer: i3 MK3 Rafts: No Supports: Yes Resolution: 0.2 Infill: 15% Notes: Printed in PETG with a 0.6 nozzle and four perimeters for strength. Recommend printing in the orientation provided with build plate supports as needed. I needed to use 0.2 layer heights with the 0.6 nozzle to get all the inner and outer perimeters to adhere properly (and not be complete overhangs). There's a lot of bridging so if your printer is suspect in this area slice the top portion into a separate model and run some test prints of it.
Tags: dewalt, adapter, dustcollection, thingiverse, dw735, planer, resin print, nz made, made to order
Design credit: Original design by Frio - licensed under CC-BY-SA.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
Dewalt DW735 to 4" 90° dust collection adapter is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email hello@3dprintworld.co.nz.
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
