Corner Radius Jig with changeable Radius Inserts Metric and Imperial

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

PLA (filament)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

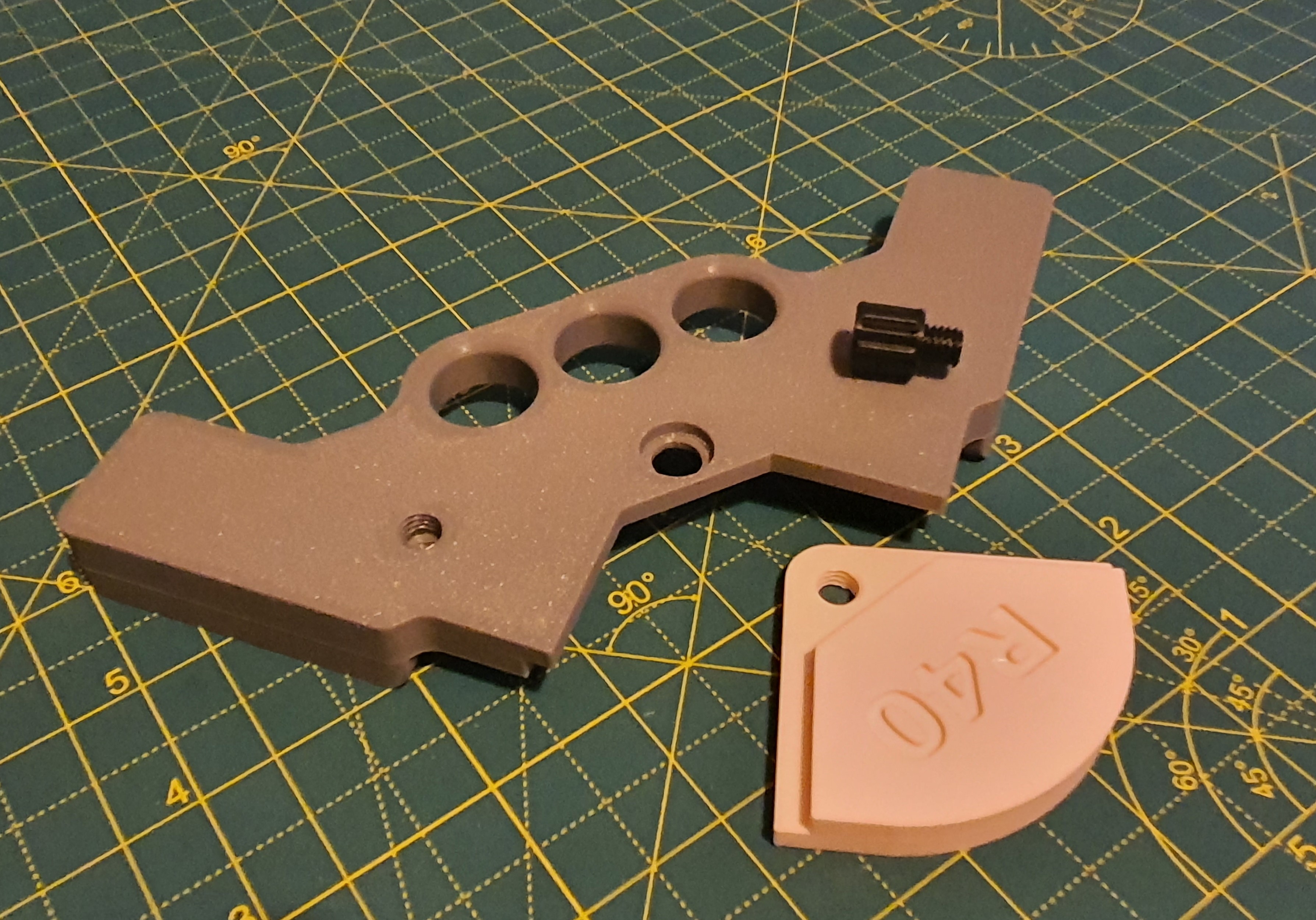

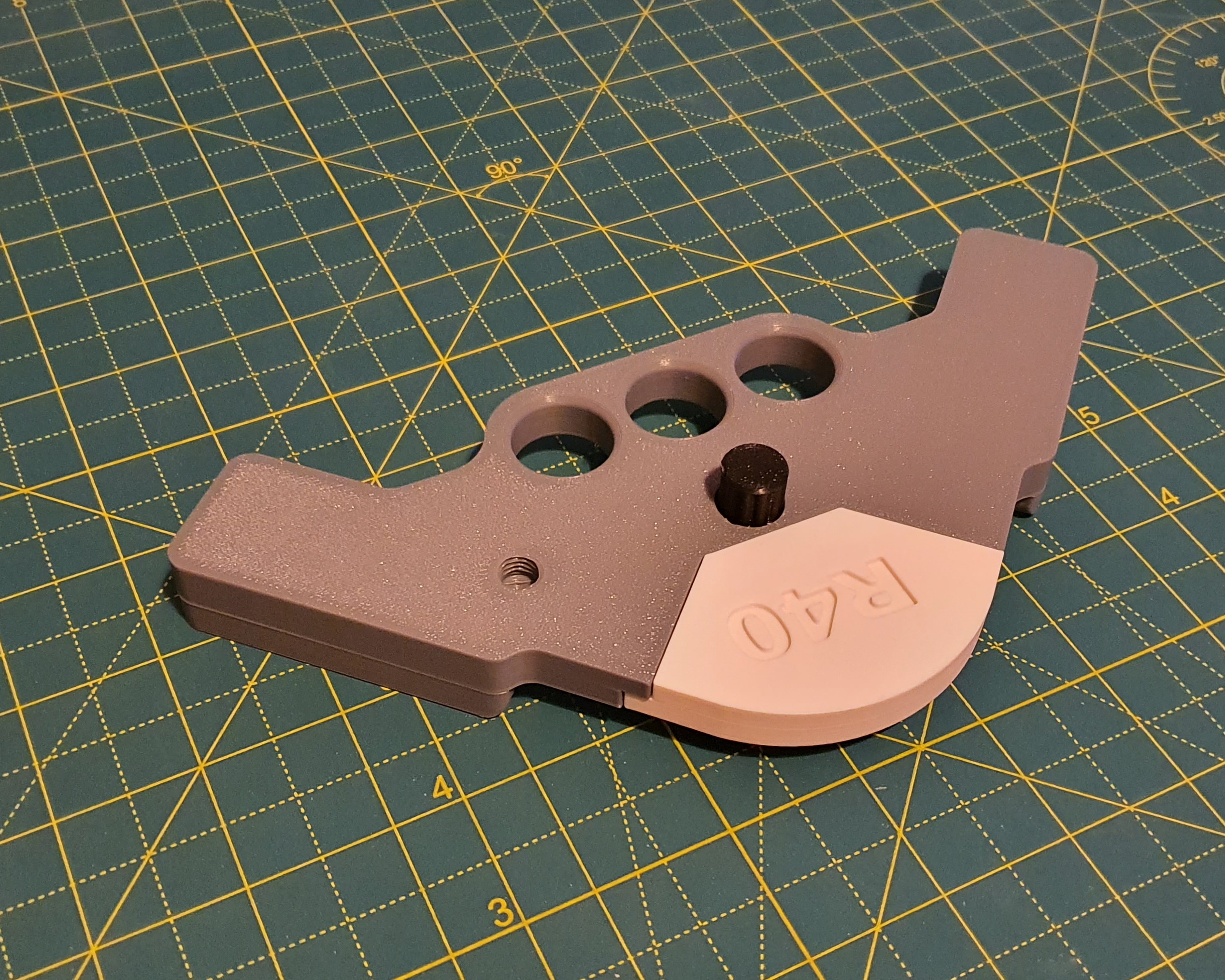

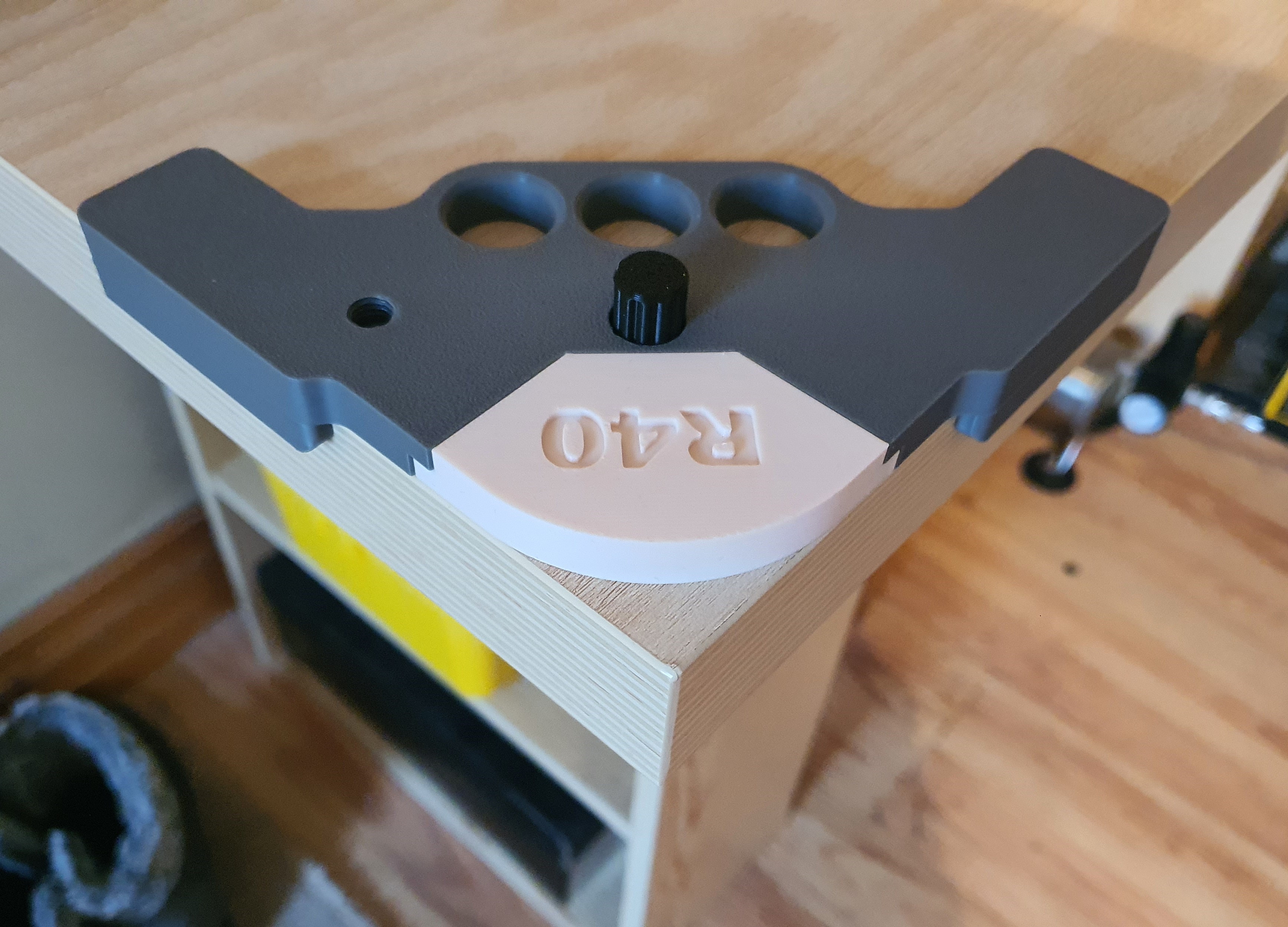

Modular Corner Jig with option of changing corner Radius Inserts. How it works? Very simple! Just choose insert with needed Radius, put it together with Main Jig Body and secure the insert with a Lock screw. Main Body has a threaded hole for Lock Screw to keep it together when you are not using a Jig. Jig corner insert Radius sizes in this set: METRICIMPERIAL5mm 10mm 15mm 20mm 25mm 30mm 35mm 40mm 50mm5/16" 5/8" 0.25" 0.5" 0.75" 1" 1.25" 1,5" 1,75"If You need different size, give me a shout and I'll make it for you. 07.10.2025 Update Added 50mm Metric Radius InsertAdded set of Metric Chamfer insertsAdded set of Imerial Chamfer Inserts29.11.2024 Update For more compatibility This Jig working with Hand Routers I have added Larger version of Main base (Works with the same inserts) with longer side arms so even using clamps You will have a larger work area for your router. Here are sizings of both bases: 28.06.2024 Update Added 5mm Radius Insert as requestedAdded Imperial unit InsertsAdded STEP file of clean insert so You can make custom one of your sizes or style19.04.2024 Update - Added Changeable insert Lock Screw without Cap so You can use a Jig with a router with bigger base. All You need is a Philips Screwdriver. You can find it in STL files here. Here are separate profiles for Main Body and inserts (+screw) Profiles. For inserts and Screw, supports are NOT needed. For main body , they are not necessary as well, but I would advise to use Supports, but paint them away from threaded Hole. That's it. Quite simple I guess. You can Buy me a coffee if You feel good doing so :) https://www.buymeacoffee.com/warlogh (And very Big Thank You For interest in my work)
