Compact weekly pill box

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

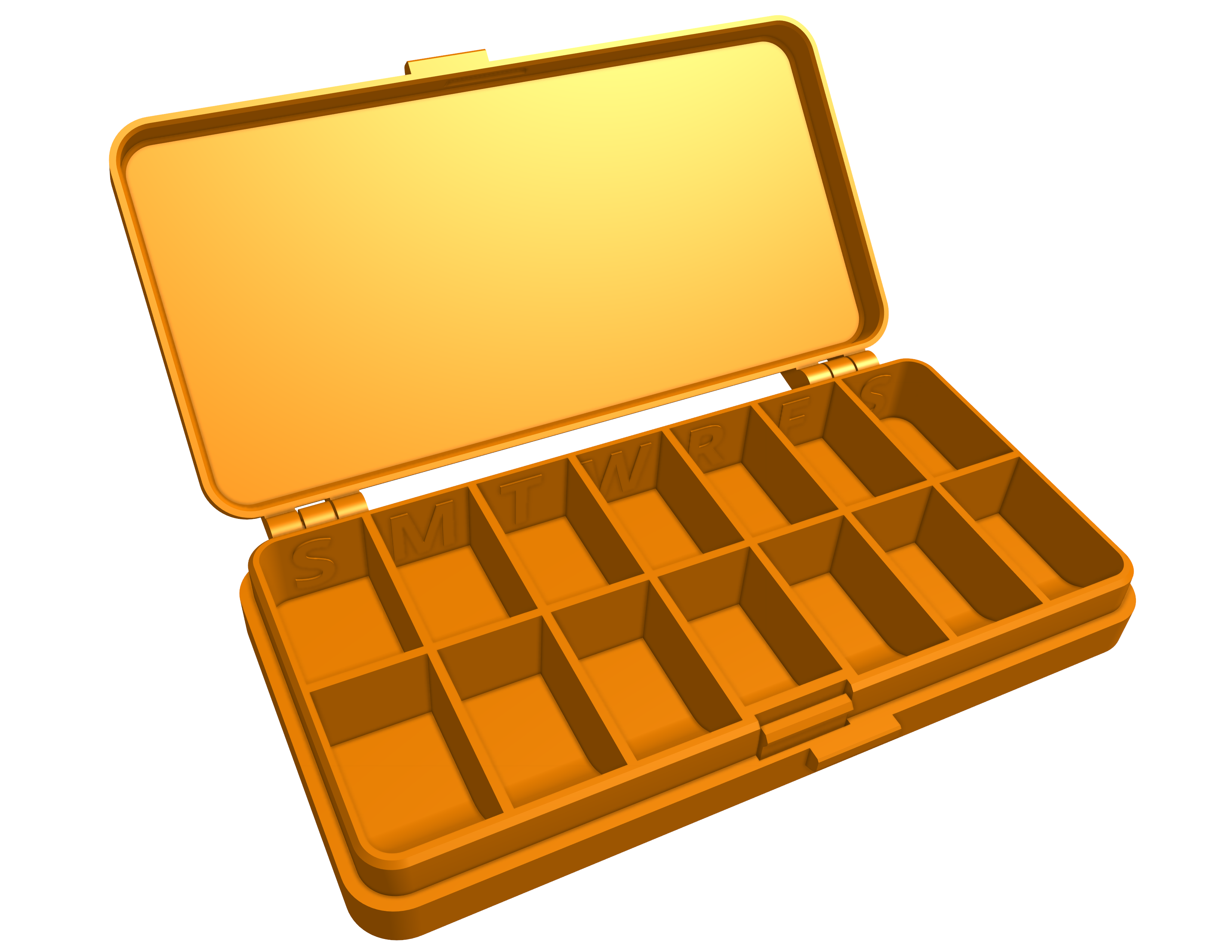

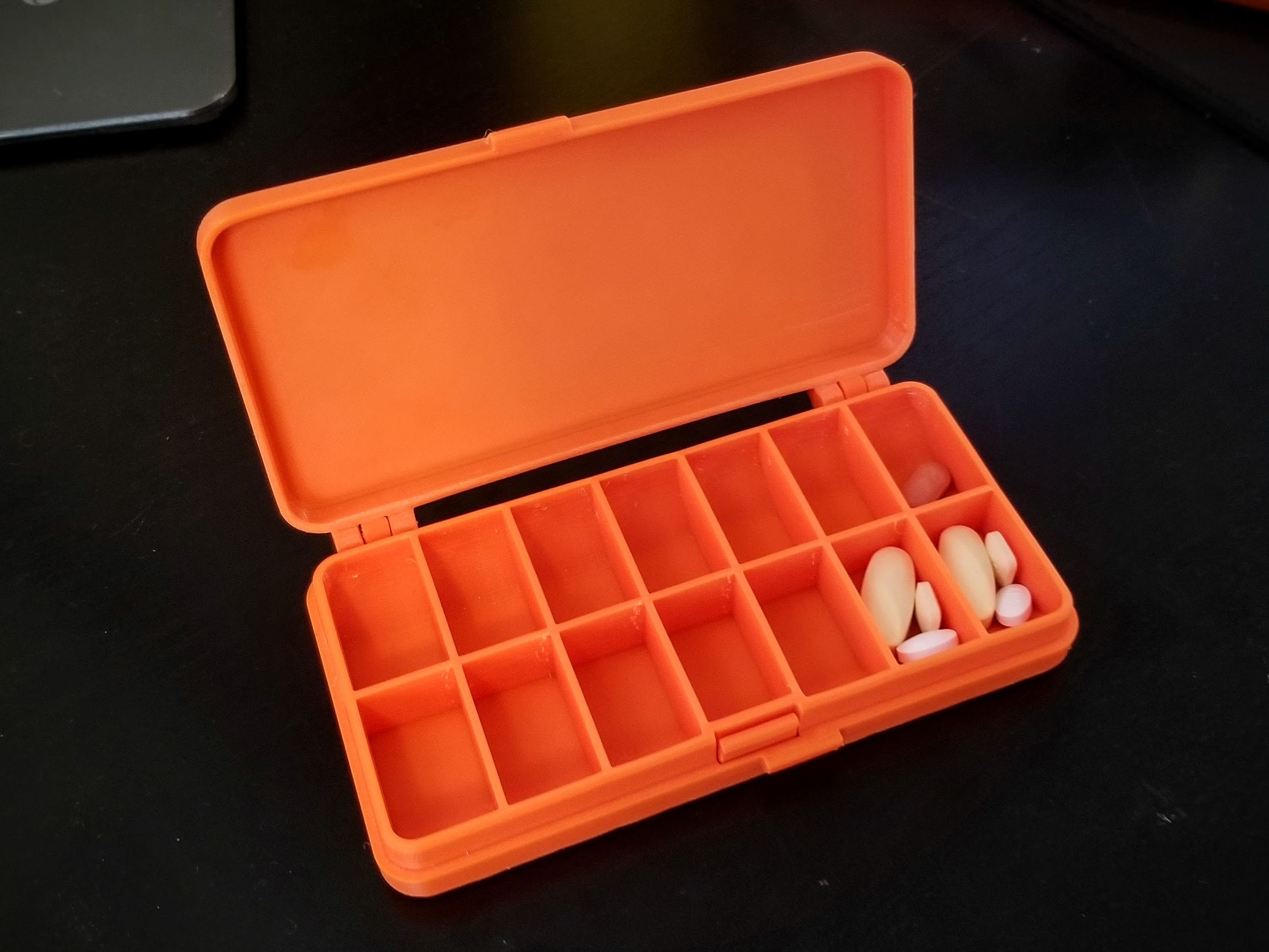

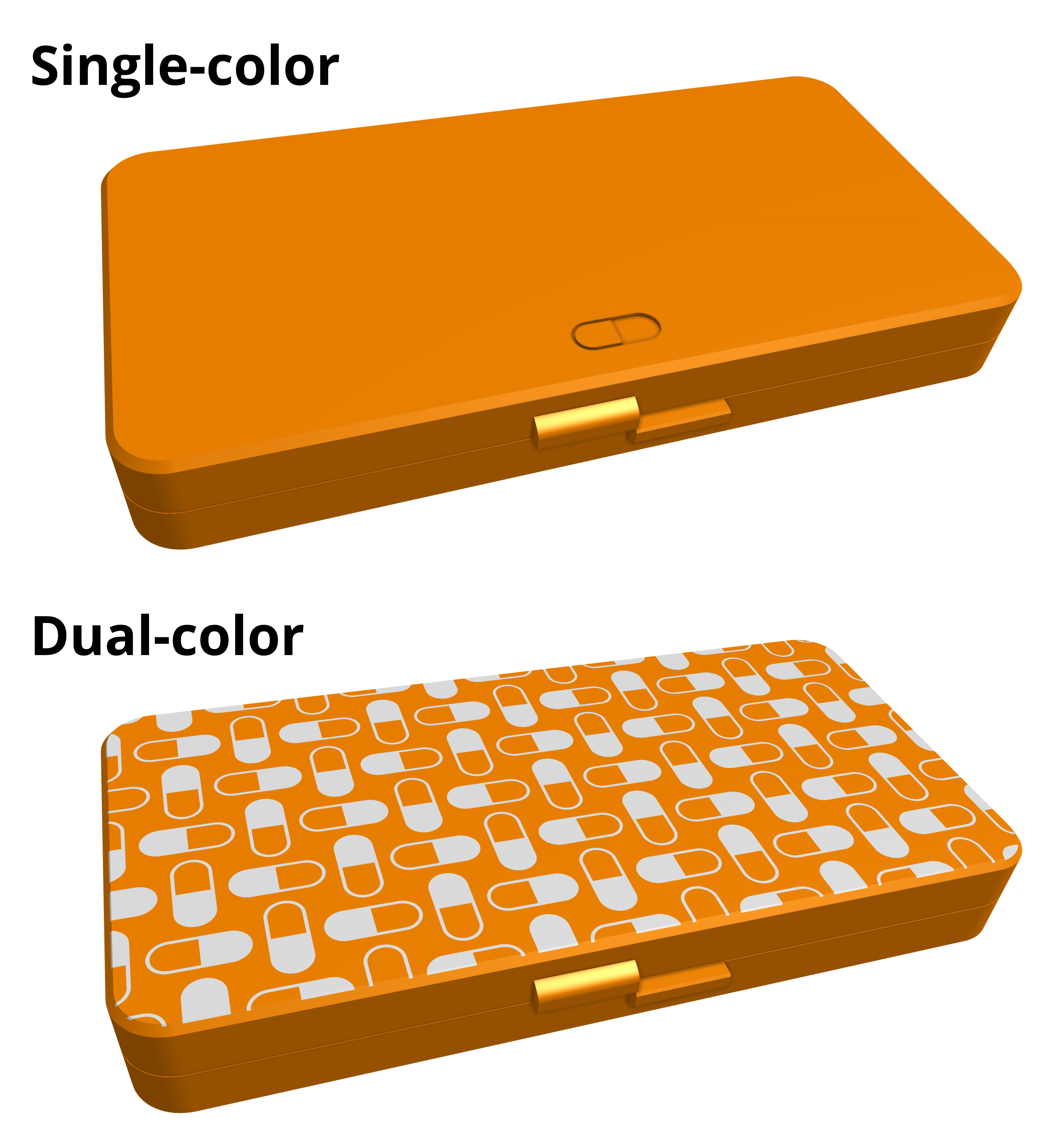

All of the commercially available weekly pill organizers I found online are pretty bulky. The 3D printable ones I found didn't quite meet my needs, either. I was worried about the box staying securely closed and being able to get the pills out of the compartments easily. So I design my own that's functional and looks sleek. The box measures 16 x 120 x 60 mm (68.5 mm, including the hinges/latch) (0.63 x 4.73 x 2.36/2.70 inches). Each of the 14 compartments measures (W x H x D) 14.8 x 12.5 x 25.7 mm (0.58 x 0.49 x 1.0 inches). If you want a bigger version, check out my larger weekly pill box. This has some nice features worth highlighting: Print-in-place hinge design2 compartments per day, labeled with the day of the weekFillets in the front of each compartment make it easy to get your pills outSecure latching mechanismTight tolerances mean that you can flip and shake the box, and your pills will stay in their compartmentsTwo versions: a simple single-color version, and a dual-color version with a geometric pill design in the topThis is also available on Thingiverse. Print instructionsI recommend printing this in PETG, due to the hinge and latch design. You can try printing it in PLA, but there is a risk that the latch delaminates. (I haven't tried it.)If the lid doesn't close nicely after printing: With the box open flat, gently warm the lid portion with a hair dryer or heat gun. Then close the box and set something heavy it. If there was warping or unevenness in your printing, this will re-warp the lid to fit with the body.
