Cable duct / cable management for desks

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

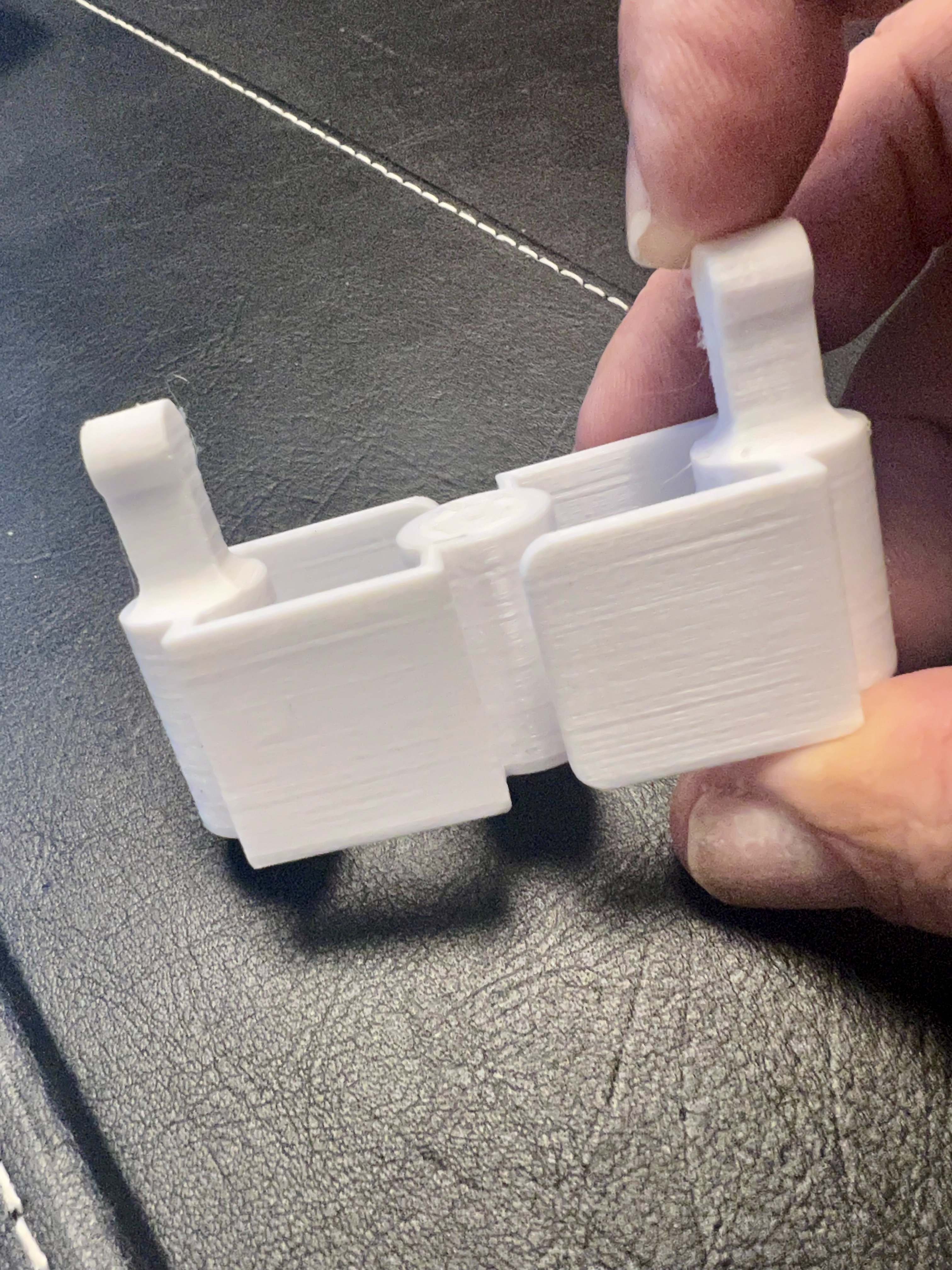

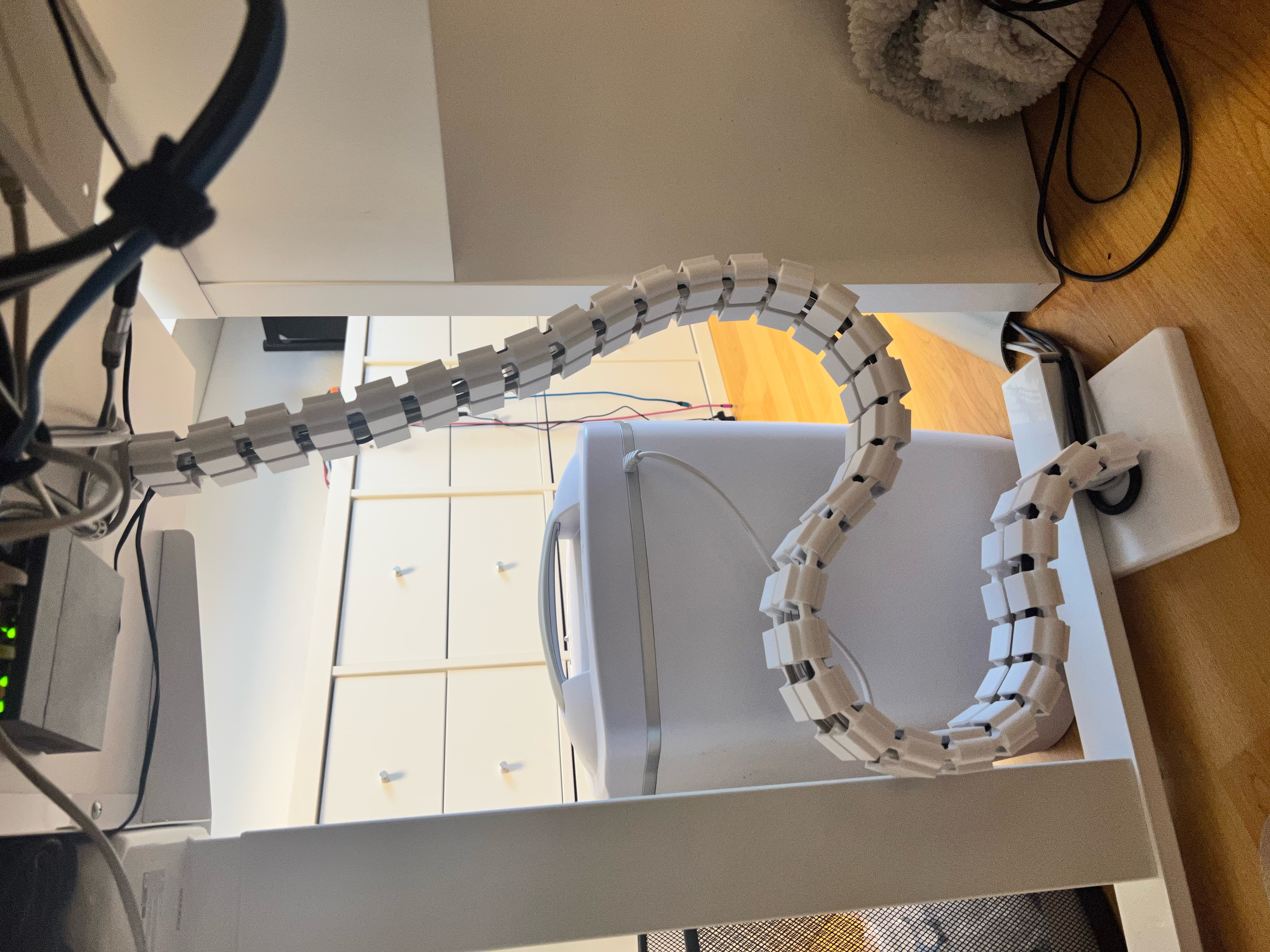

Cable duct / cable management for desks The cable guide can be created in any length! To be printed: The upper end for screwing under the table top. The foot as the lower end. The narrow frame under the foot to create space for e.g. a weight (only if necessary). The individual "links" in any quantity. For example, I needed 38 pieces. This allows the desk to be raised to a height of just over 1.2m. The parts are then simply plugged together. If necessary, e.g. a metal plate can be glued/screwed under the foot as a weight to fix it better on the floor. In addition, a 1mm steel cable should definitely be pulled through the holes to prevent additional fixation against the parts slipping apart due to their own weight. Here are links to the rope and the clamps on Amazon: Jam: https://www.amazon.de/gp/product/B07LBBY4DD/ref=ppx_yo_dt_b_asin_image_o04_s00?ie=UTF8&psc=1 Steelrope: https://www.amazon.de/gp/product/B07MCYW98Q/ref=ppx_yo_dt_b_asin_image_o04_s00?ie=UTF8&psc=1 Everything was printed in PETG. No supports. 0.2 speeds. Due to increased stability with 6 wall lines. I've attached the Fusion360 files. These have not been cleaned up. However, if you want, you can easily make modifications with it.
