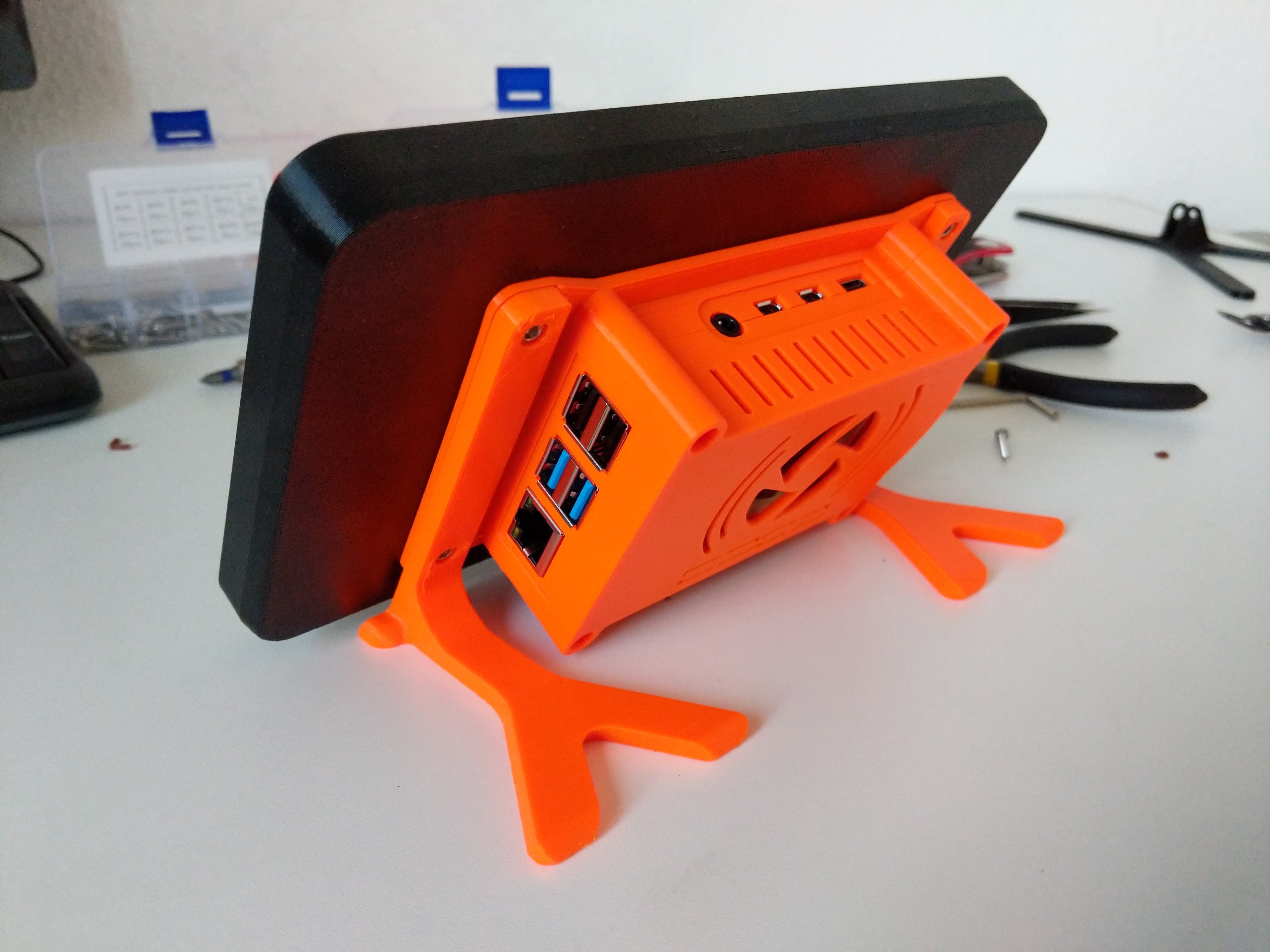

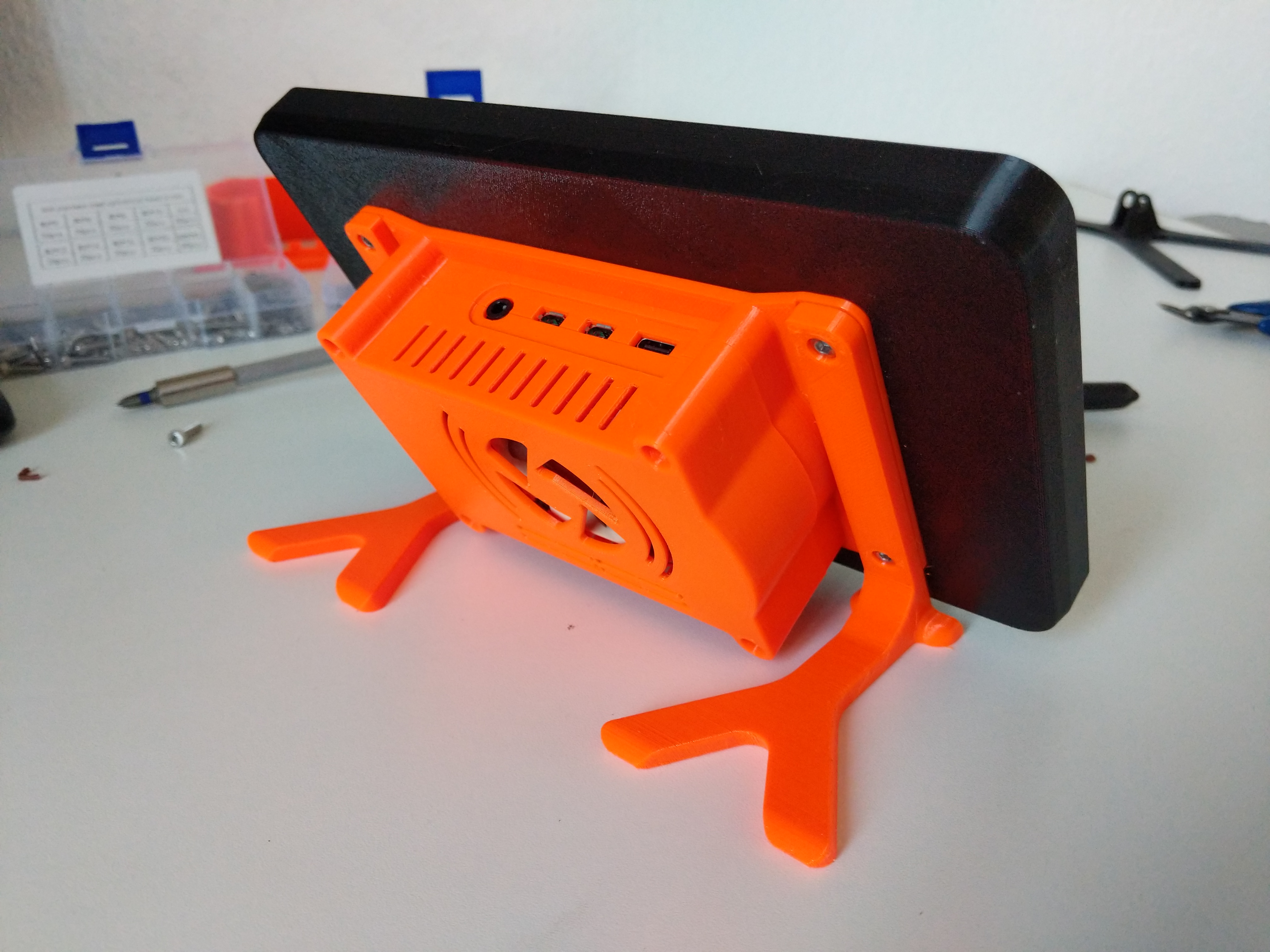

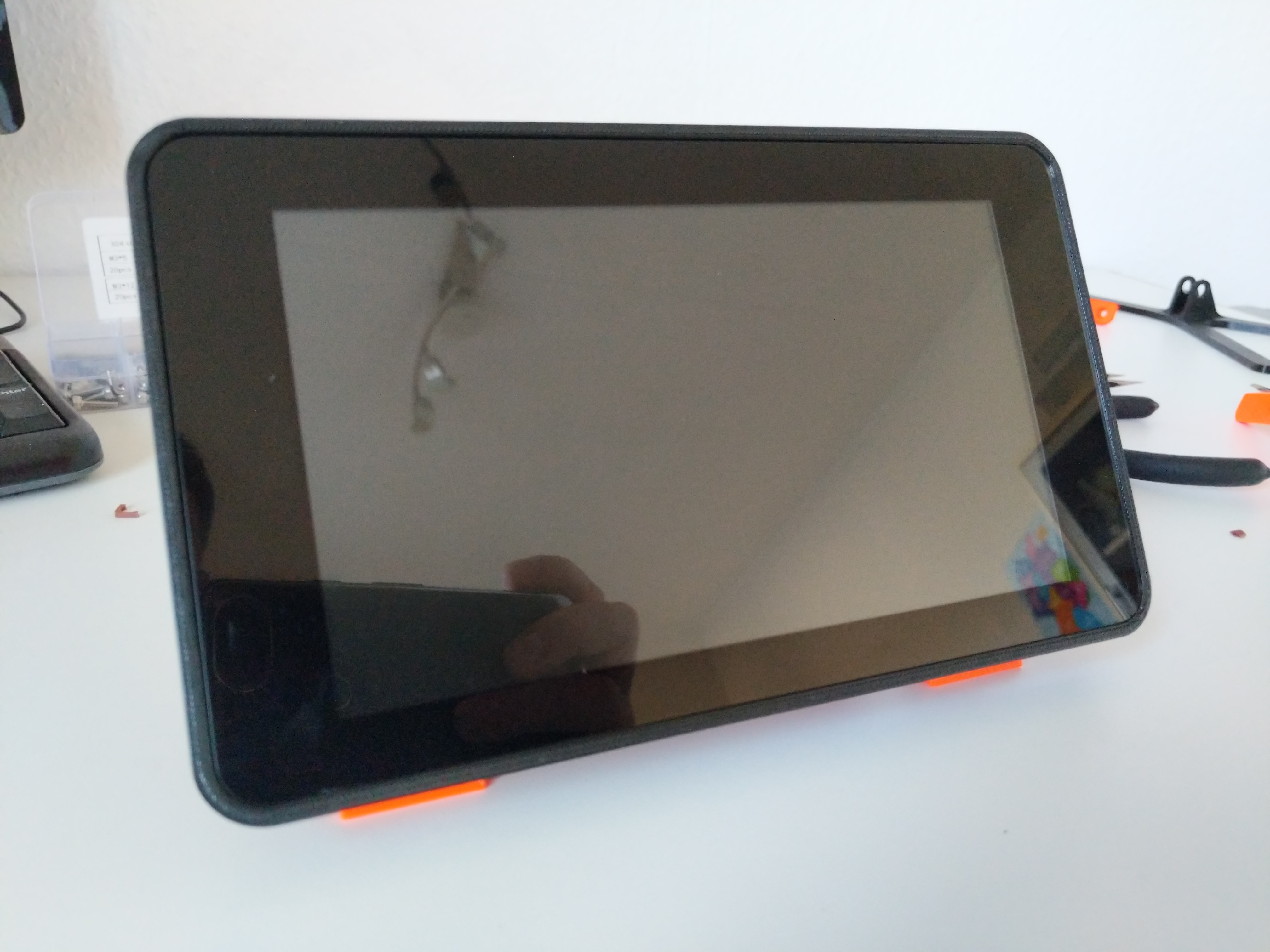

7" Touchscreen case for Raspberry Pi 4 + internal fan

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

Case for Raspberry Pi 7" Touchscreen and Raspberry Pi 4 *** New case for Raspberry Pi Touch Display 2 ***UpdatesAlternative top case part with additional slot for camera ribbon cable, see subfolder "case top v2". FeaturesInternal fan mount (40mm x 40mm x10)Thread inserts (pi case)Alternative mounting brackets: Plate mounting bracket for 7" touchscreen caseV-Slot profile 2020 mounting bracket for 7" touchscreen caseRequired partsRaspberry Pi 4BRaspberry Pi 7-Inch Touch Screen DisplayFan 40x40x10, 5V → Noctua NF-A4x10 5V incl. anti-vibration mounts4x Anti-vibration mounts (See fan)2x 1P Single Dupont connectors (For fan)Mount Raspberry Pi case (top / botton parts) 4x M3 thread inserts → Ruthex RX-M3x5.74x Cylindrical head screw M3 x 12mmMount Raspberry Pi case (display / stands / botton parts) 4x Cylindrical head screw M3 x 12mmMount Raspberry Pi / fan 4x Cylindrical head screw M2.5 x 16mmPrint instructionsSupports: No Pi image configurationIn the config.txt the screen orientation must be rotated. lcd_rotate=2 Building instructionInstall the threaded inserts in the bottom part of the case. Install the data cable (ribbon cable) and power (red/black wires) with the touch screen controller card. See Raspberry Pi - Documentation -> Physical InstallationAssemble the touch screen, display case, bottom case and strands with M3x12mm screws. Attention do not tighten the screws yet!Place the Raspberry in the case. Do not forget the SD card with image!Connect the Raspberry with the touch screen. Data cableRed wire (+): 5V power pin e.g. GPIO 2Black wire (-): Ground pin e.g. GPIO 9Install the fan on the fanmount with 4 anti-vibration mounts.Install the fanmount on the Raspberry with M2.5 x 16mm screws. Tighten the screws. Tighten the loose M3 x 12mm screws. (See Point 3)Connect the fan with the Raspberry. Red wire (+): 100% fan speed -> 5V power pin e.g. GPIO 4 or reduced fan speed -> 3V3 power pin e.g. GPIO 17Black wire (-): Ground pin e.g. GPIO 6Install the top part onto the bottom part using M3 x 12mm screws.
