45° Adapter for Anycubic Vyper Filament Sensor

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

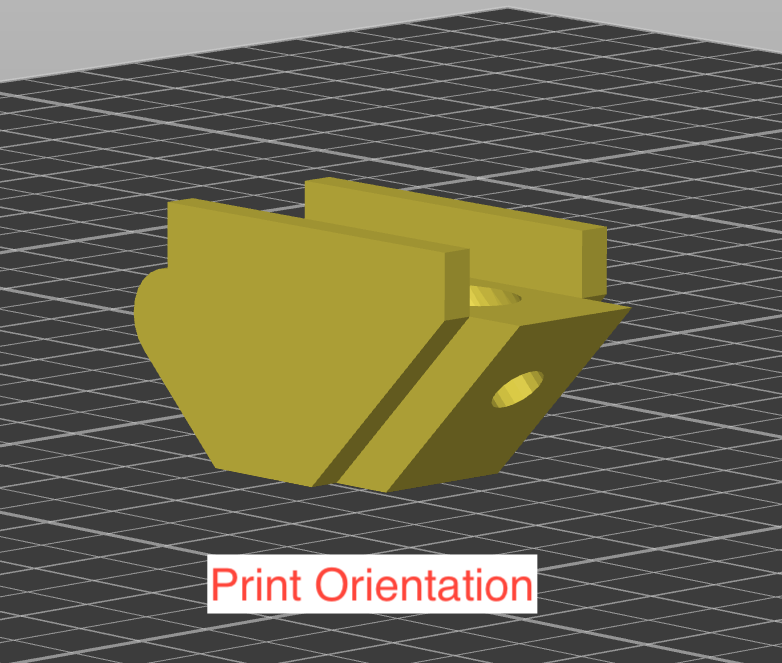

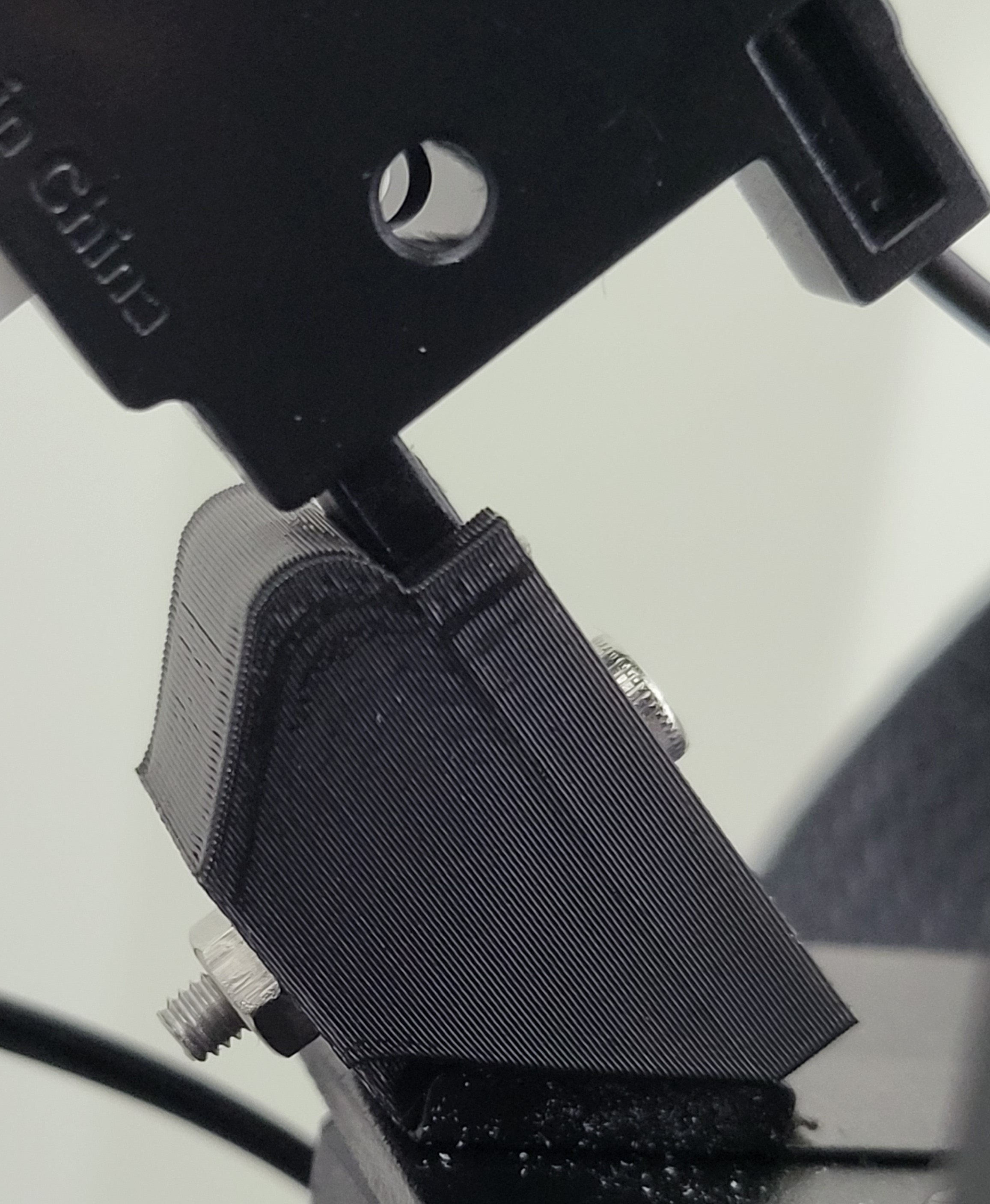

Allows mounting the Anycubic Vyper's filament sensor at a 45° angle to reduce strain on the sensor when the filament spool is mounted on the top instead of on the side. Prints nicely in PLA without supports (see picture with print orientation) in around 15 minutes. Assembly only takes 5-10 minutes. If you like what I'm doing, please give it a like 👍 consider joining my club or buying me a coffee! 😃👍 Additionally required parts1x M3x18 Bolt or longer1x M3 NutAssembly instructionsUnload your filament from the filament sensor to make installation easier.Unscrew the bolt on the filament sensor.Place the adapter like in the photos where the filament sensor used to be.Using the bolt you just unscrewed, screw the adapter to the printer.Place the filament sensor between the two rails as in the photos, aligning the hole on the filament sensor with the hole on the adapter.Put the M3x18 bolt through the hole and screw on the M3 nut on the back of the adapter tightly as in the photos.Changes to the originalThis is a remix of this model: https://www.thingiverse.com/thing:4943235 Rails were added on the sides to prevent the filament sensor from wiggling from side to side and further reduce strain on the filament sensor.A hole on the side to insert a thin nut was filled in to make it easier to print.
