3D Printed Cable Management Spine

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

PLA (filament)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

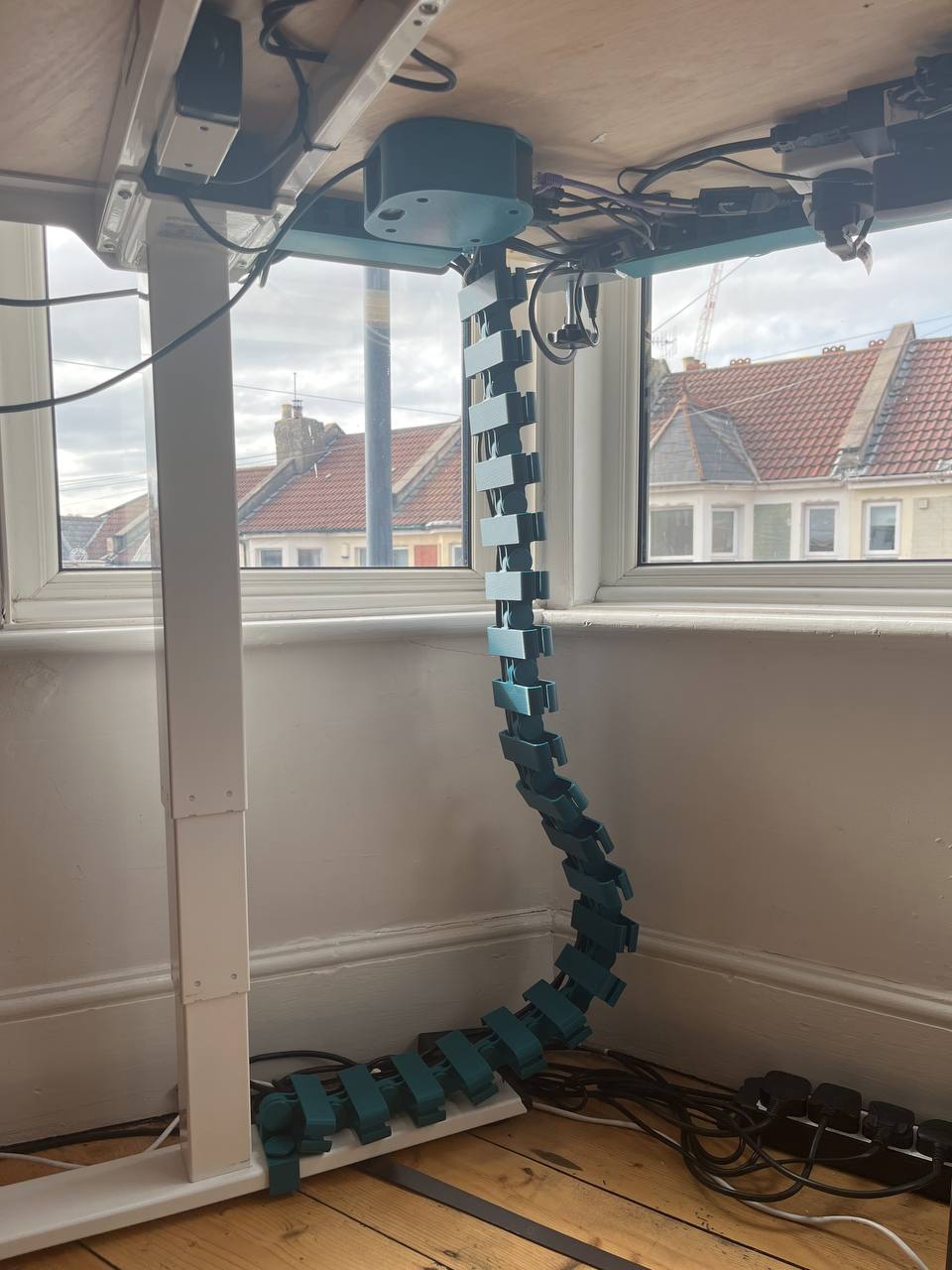

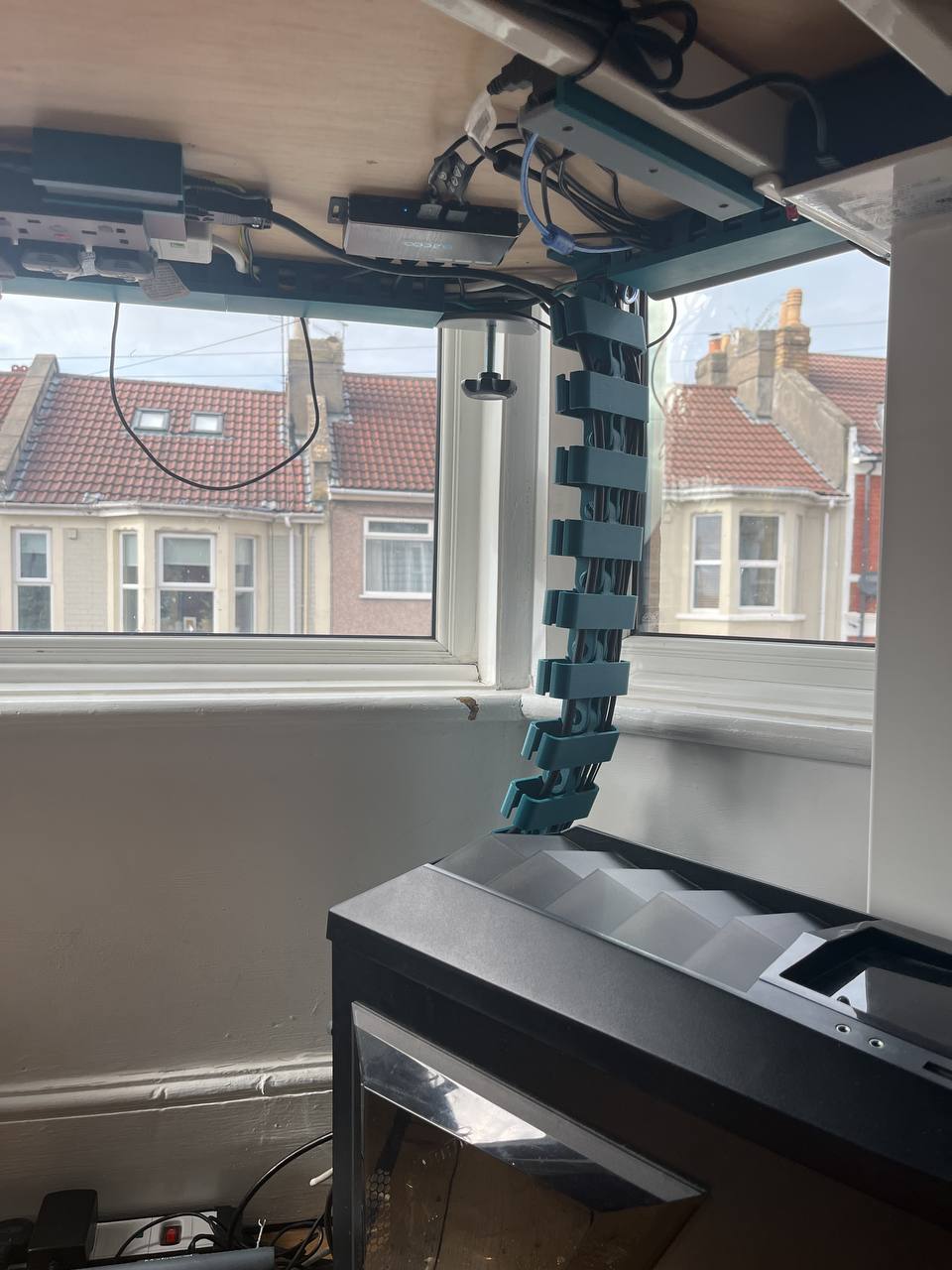

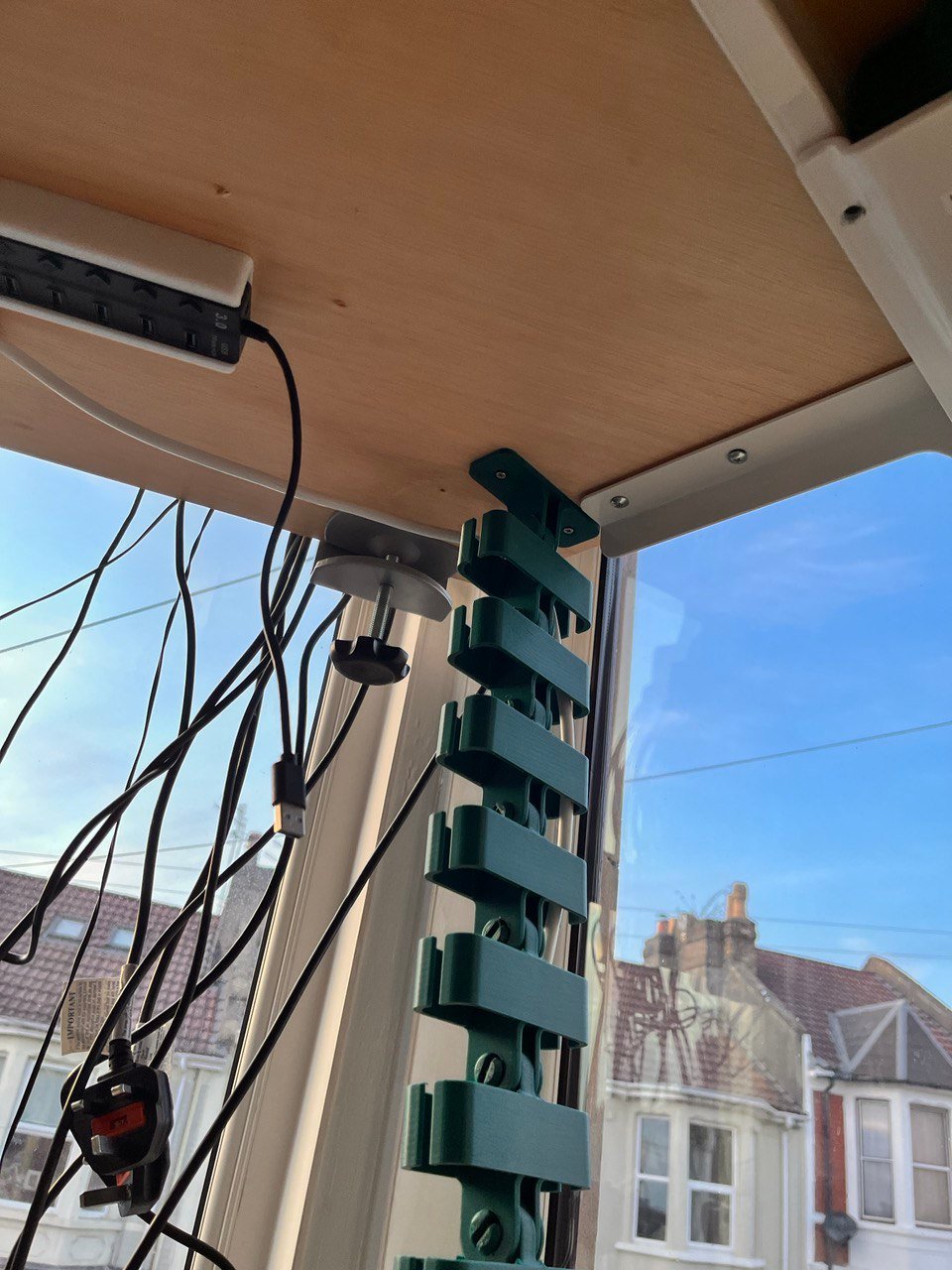

3D Printed Cable Management SpineMany Standing desks suffer from poor cable management due to all the cables having to be twice as long to support the desk moving up and down. Initially, I used some cable management sleeves to bundle the cables together however, this just meant that instead of having loads of cables dangling and getting caught I had only a couple of really thick cables. This presented multiple issues where the cables would get caught and then rip off the equipment potentially damaging them. I finally decided to print a cable management arm that would be fixed to the table and allow the cables to move only in a certain way. The standing desk legs that I used are linked below: Useful LinksStanding Desk legs Print SettingsPrinter Brand:Prusa Printer: I3 MK3S Rafts:No Supports: Yes Resolution:0.4mm Infill: 15% Filament:PrimaValue PLA Green Notes:For best results its recommended to print all parts with full support as to allow the overhangs to print perfectly. This is especially important when printing the links. Technical DrawingExploded ViewsDemo
